Overview

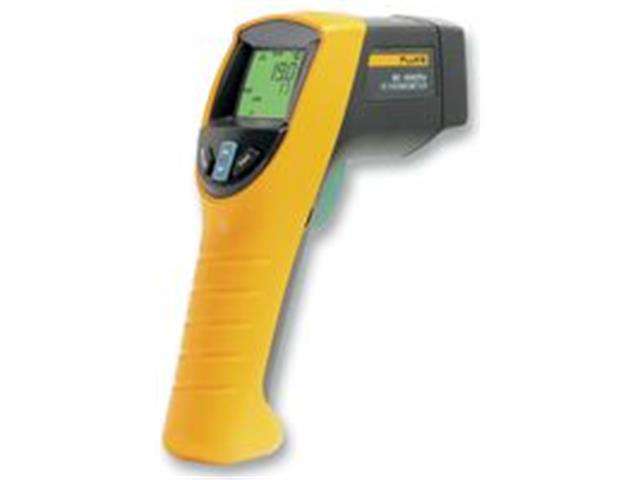

The easy-to-use Fluke 561 combines the temperature measurement functions that professionals need for various heating, ventilation and air conditioning monitoring jobs, all in one tool. It provides both noncontact infrared (IR) and contact temperature measurements, replacing the need for multiple test tools.
Features
IR thermometer for quick measurements up close or at a distance
Single-point laser sighting
Easy emissivity adjustment for measuring pipes and ducts more accurately
Includes a Velcro pipe probe for super-heat and sub-cooling as well as other surface contact measurements
Also compatible with all standard mini-connector K-type thermocouples
MIN, MAX and DIF temperature readings
Lightweight (only 340 grams) and portable
Includes measurement guide
Specification
Temperature range: -40° to 550°C
Display resolution: 0.1° of reading
D:S (Distance to spot size): 12:1
Easy emissivity selector: Adjustable with three settings: low (0.3), medium (0.7), high (0.95)
Display accuracy (Assumes ambient operating temperature of 23° to 25°C): ± 1.0% of reading or ± 1°C, whichever is greater; below 0°C, ± 1°C, ± 1°/1°
Response time: 500 mSec (95% or reading)
Repeatability: ± 0.5% of reading or ± 1°C, whichever is greater
Spectral focus: 8 µm to 14 µm
Laser sighting: Single-point laser
Laser shutoff: Laser turns off above ambient temperature of 40°C
Laser power: Class 2 (II) operation; output ‹ 1 mW, wavelength 630 nm to 670 nm
Relative humidity: 10% to 90% RH non-condensing, at < 30°C
Power: 2 AA batteries (alkaline or NiCD)
Display hold: 7 seconds
Backlit display: Yes, LCD with dual temperatures (current and MAX/MIN/DIF/KTC), low battery, F/C indicator, and Scan/Hold options
Operating temperature: 0° to 50°C
Storage temperature: -20 to 65°C
MAX, MIN, DIF temperatures: Yes
Thermocouple type K mini-adapter input: Yes, compatible with industry standard type K probes with mini-connector
Thermocouple type K Velcro pipe probe: Yes, with a temperature range of 0° to 100°C and accuracy of ± 2.2°C
Measurement guide: Yes
