Thermocouple Temperature Calibrator, Millivolt Measurement & Source: -10mV~75mV, Range:0.01mV, 0.015 % + 10 µA, DC mA Measurement:0-24mA, RANGE:0.001mA, 0.010%+2 µA, MAX:30V, MIL-T-28800E, CLASS2, IP52

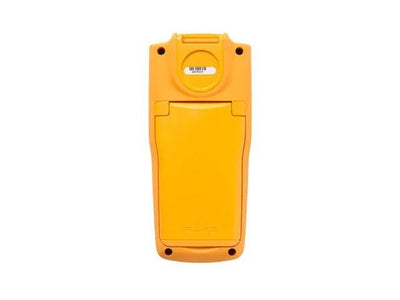

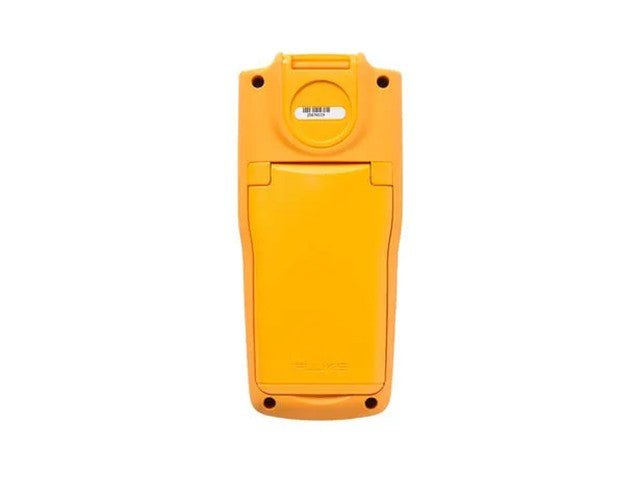

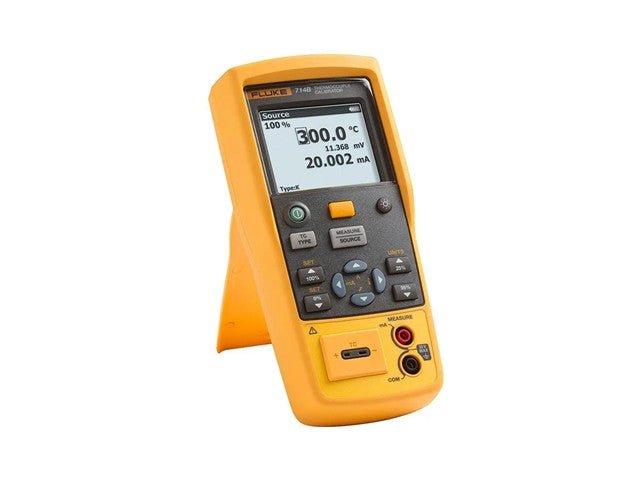

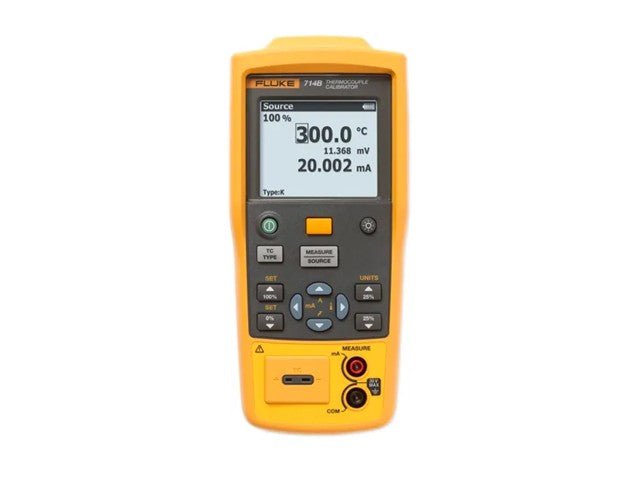

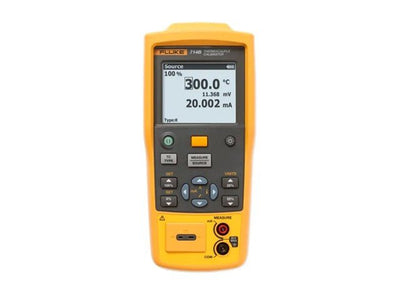

Thermocouple Temperature Calibrator
Overview
Delivering outstanding performance, this thermocouple calibrator presents durability and reliability. The calibrator is compact, lightweight, and offers an easy-to-use push-button interface. It is EMI tolerant, dust and splash resistant, and features a removable battery door for quick battery changes.
Features
- Measure temperature from TC output
- Simulate 17 different RTD types and resistance
- Operable with nine types of thermocouples
- Calibrate linear TC transmitter with mV source function
- Selectable °F or °C
- Dual inputs and backlit display for easy interpretation of measurements
- Thermocouple mini-jack termination
- Holster features test lead storage
- Power down settings remembered at power up for easy restart of tests
- Compatible with TPAK magnetic hanging system
- Measure 4 to 20 mA signals while simultaneously sourcing a temperature signal
Applications
- Petro-chemical
- Oil and gas
- Food and beverage
- Pharmaceutical
Specifications
| Thermocouple mV Input |
| Range |
-10 to 75 mV |
| Resolution |
0.001 mV |
| Accuracy (% of Reading + Floor) |
1 year: 0.015 % + 10 µV
2 year: 0.02 % + 15 µV (2 year) |
| Thermocouple mV Output |
| Range |
-10 to 75 mV |
| Resolution |
0.01 mV |
| Accuracy (% of Output + Floor) |
1 year: 0.015 % + 10 µV
2 year: 0.02 % + 15 µV |
| Thermocouple mA Input |
| Range |
0 to 24 mA |
| Resolution |
0.001 mA |
| Accuracy (% of Reading + Floor) |
1 year: 0.01 % + 2 µA
2 year: 0.02 % + 4 µA |
| General Specifications |
| Maximum Voltage Applied Between any Terminal and Earth Ground or Between any Two Terminals |
30 V |
| Temperature |
Operating: -10 to 50 °C
Storage: -20 to 60 °C |
| Altitude |
Operating: 6561' (2000 m)
Storage: 39,370' (12,000 m) |
| Relative Humidity (% RH Operating without Condensation) |
Non-condensing
90% (10 to 30 °C)
75% (30 to 40 °C)
45% (40 to 50 °C) |
| Vibration Requirements |
MIL-T-28800E, Class 2 |
| Drop Test Requirements |
3.2' (1 m) |
| IP Rating |
IEC 60529: IP52 (with TC cap) |
| Electromagnetic Environment |
IEC 61326-1, Portable |
| Safety |
IEC 61010-1, Max 30 V to earth, Pollution Degree 2 |
| Power Supply |
4 AA alkaline batteries/NEDA code: 15A, IEC code: LR6 |
| Dimensions |
0.4 x 3.3 x 7.4" (52.5 x 84 x 188.5 mm) |
| Weight |
1.13 lbs (515 g) |
Downloads
Additional Information
| Device |
Calibrator |
| Type |
Thermocouple | Temperature |
