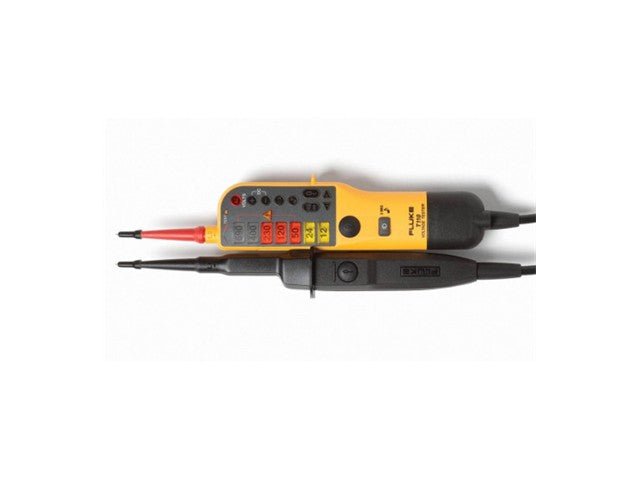

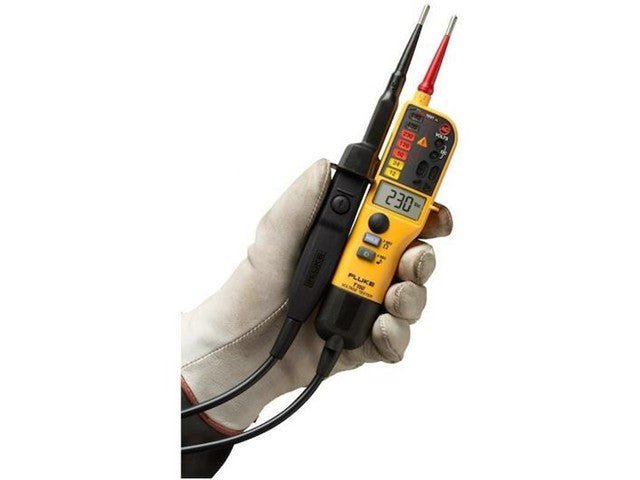

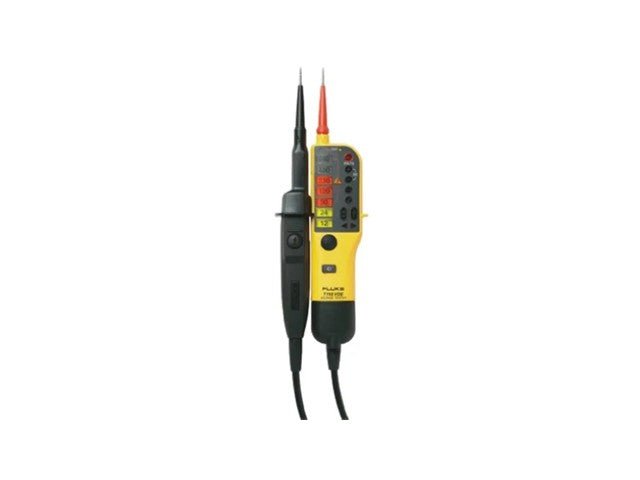

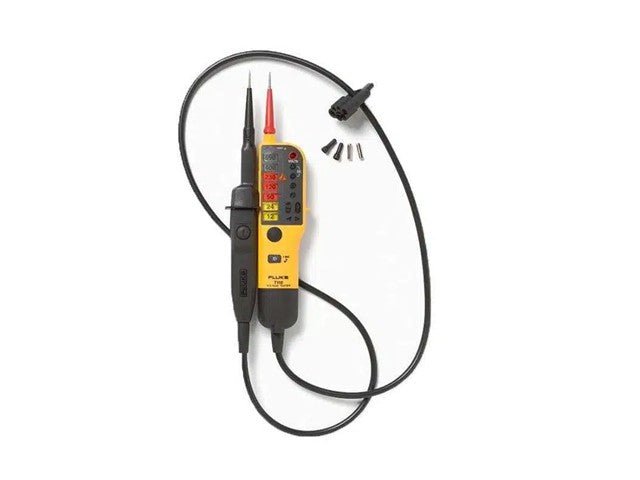

FLUKE T110

The new Fluke two-pole voltage and continuity testers are now more rugged and easier to use than ever before.

• Fast test results the way you need them, with large, easy-to-use buttons, bright backlights, and clear audible and physical indicators designed for any work situation.
• Rugged, high-quality construction is built to last. This includes a heavy duty molded case, a thicker cord with wear indicator, sturdy battery case, and well-fitting and durable probe protector.
• Enhanced ergonomic design feels good in your hand, is easy to use (even with gloves) and quick, secure probe docking.
• A complete family of testers with the features, functions, and price/performance to fit your applications and preferences.

• Backlit LED indicator
• Continuity test—audible results with on/off
• Vibratory indicator under load
• Voltage test
• Indication of polarity
• Single pole test for phase detection
• Resistance measurement
• Switchable load
• Rotary field indicator
• Probe tip protection
• Voltage display with discharged batteries
• Electrical torch function Wear indicator test lead wire

• Voltage AC/DC : 12V to 690V
• Continuity : 0 to 400 kΩ
• Frequency : 0/40 to 400 Hz
• Phase rotation : 100 V to 690 V
• Response time (LED indicator) : < 0.5 s
• 200 kΩ input impedance : Current draw 3.5 mA @ 690 V, Current draw 1.15 mA @ 230 V
• 7 kΩ input impedance (with load buttons pressed) : Current draw 30 mA @ 230 V
• Safety rating : CAT III 690 V, CAT IV 600 V
• IP rating : IP64
• Power requirement : 2-AAA batteries
• Net weight : 280 g (9.9 oz)
• Size (LxWxH) : 26 cm x 7 cm x 3.8 cm
• Warranty : 2 years
