FNIRSI DPOS350P 350MHZ 4IN1 SCOP

Name: FNIRSI DPOS350P 350MHZ 4IN1 SCOP - Communica [Part No: FNIRSI DPOS350P 350MHZ 4IN1 SCOP]
Brand: Fnirsi
SKU: FNIRSI DPOS350P 350MHZ 4IN1 SCOP
Price: 6000 ZAR
Availability: OutOfStock
Rating: 4.00 (1 reviews)

SKU: FNIRSI DPOS350P 350MHZ 4IN1 SCOP

BRAND: Fnirsi

Sold Out
R 6,900.00_{(inc VAT)}
R 6,000.00_{(ex VAT)}

Collections: Test & Measurement

Type: Oscilloscopes

Category: Hand-held Oscilloscopes

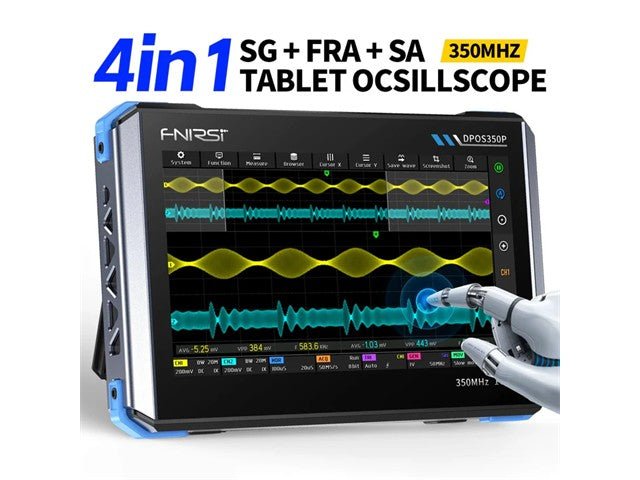

FNIRSI DPOS350P 4-IN-1 Tablet Oscilloscope 350MHZ, Spectrum Analyzer 200Khz - 350Mhz, Frequency Response Analyzer DDS Generator, 2Ch Handheld Oscilloscope 1 GSA/S, 7" Touch Screen Digital Phosphor

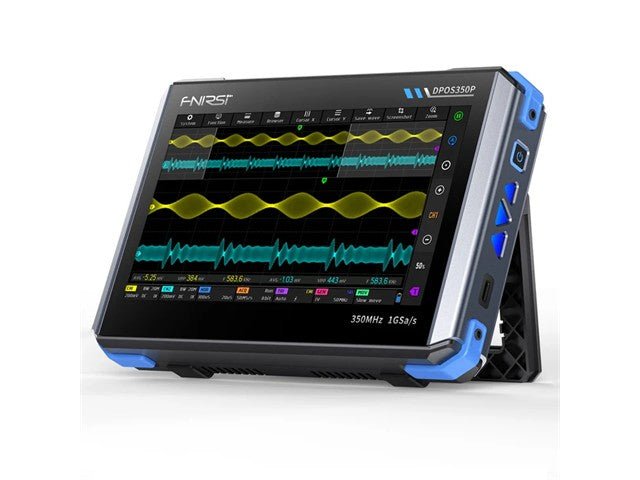

350MHz 4-IN-1 Tablet Oscilloscope

Overview

The DPOS350P is a high-performance, feature-rich all-in-one oscilloscope, suitable for a wide range of industrial and research applications. With its powerful integrated design, high sampling rate, and wide bandwidth, it can accurately analyze complex signals, provide clear waveform display, and smart triggering. The built-in high-resolution display, touch operation, intelligent triggering, and multiple measurement modes make it a precise and reliable tool for testing and analysis in laboratories, production lines, and maintenance sites.

Features

Fine display and operation: Equipped with a 7-inch 1024x600 high-resolution IPS touchscreen, it provides clear waveform display and supports grayscale and color temperature mode switching, making it easy to operate in different testing environments.

Specifications

Model	DPOS350P
Power-on configuration	5 preset items
Charging requirements	QC18W - 12V/1.5A (Type-C)
Languages	Chinese / English / Russian / Portuguese
Battery specifications	3.7V, 8000mAh lithium battery
Screen size	7 inches
Standby time	about 3 hours
Screen resolution	1024 × 600 pixels
Charging time	Startup ≈ 5 Hours
Screen technology	IPS full viewing angle
Total power consumption	10W
Interaction mode	Capacitive touch screen
Heat dissipation	Air cooling
Expansion interface	USB data port
Dimensions	190mm × 128mm × 37mm
Automatic shutdown	15 minutes ~ 1 hour / off
Firmware upgrade	Supports .iso image upgrade
Storage Temperature Range	-20℃ ~ 60℃

Oscilloscope Parameters

Specification	Details
Analog Channels	2

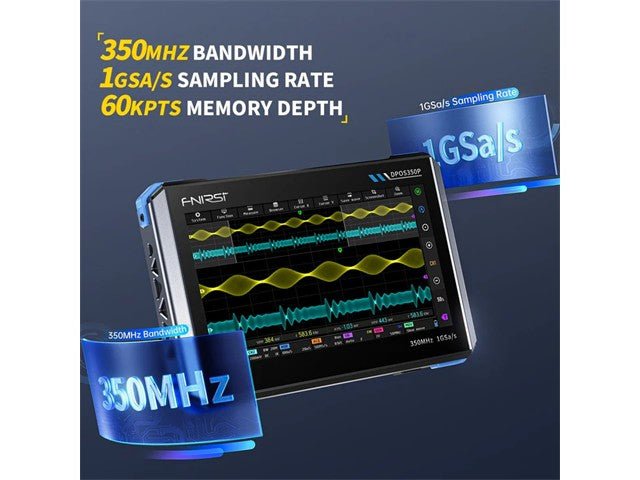

Analog bandwidth	350MHz
Rise time	1nS
Max sampling rate	1GSPS
Memory depth	60Kpts
Input impedance	1MΩ / 14pF
Time base range	5nS ~ 50S
Roll time base	50mS ~ 50S
Vertical sensitivity	2mV ~ 20V (1X)
Vertical range	16mV ~ 160V (1X)
DC accuracy	±2%
Time accuracy	±0.01%
Input coupling	DC / AC
Probe attenuation	1X / 10X / 100X
Hardware bandwidth limit	150M / 20M

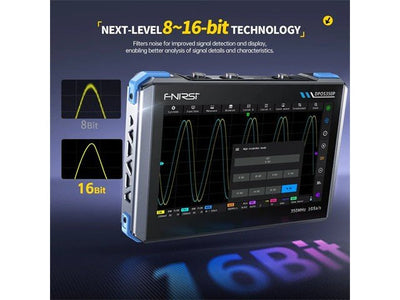

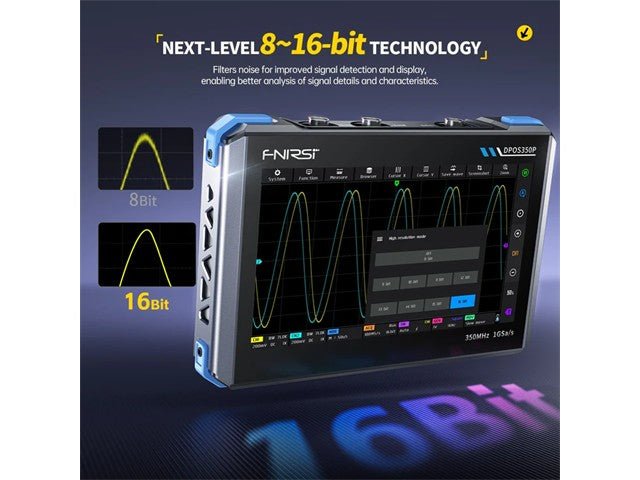

High resolution mode	8bit ~ 16bit
Parameter measurements	12 types
Cursor measurement	Time, period, frequency, level, voltage
Trigger detection	Digital trigger
Trigger channel	CH1 / CH2
Trigger mode	Auto / Single / Normal
Trigger edge	Rising / Falling
Trigger suppression	L1 ~ L3
Trigger level	Manual / Auto 10% ~ 90%
Screenshot storage	90 pictures
Waveform storage	500 groups
Background grid	Display / Hide
Waveform movement	Coarse adjustment / Fine adjustment
Overvoltage protection	Withstand voltage 400V
Waveform brightness	Adjustable
Simple FFT display	Supported
Digital fluorescence	Supported
Color temperature display	Supported
X-Y mode	Supported
ZOOM time base	Supported
One-key auto adjustment	Supported
One-key return to zero	Supported
Data browser	Supported

Signal Generator Parameters

Specification	Details
Waveform types	14 standard functions + captured waveform
Frequency	0 ~ 50MHz (sine wave only, others up to 10M/5M/3M)
Amplitude	0 ~ 5VPP
Offset	-2.5V ~ +2.5V
Duty cycle	0.1% ~ 99.9%
Frequency resolution	1Hz
Amplitude resolution	1mV
Offset resolution	1mV
Duty cycle resolution	0.1%
Custom captured waveform	500 groups

Frequency Response Analyzer

Specification	Details
Excitation frequency	100Hz ~ 50MHz
Excitation amplitude	0 ~ 5VPP
Excitation offset	-2.5V ~ +2.5V
Excitation frequency count	20 ~ 500
Cursor measurement	Frequency / Gain / Phase
Operating mode	Single / Cyclic
System calibration	Supported

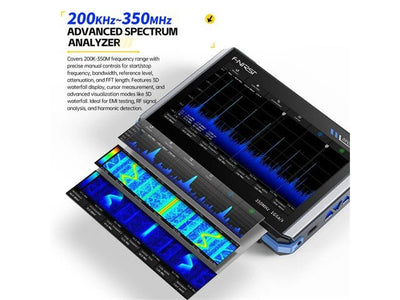

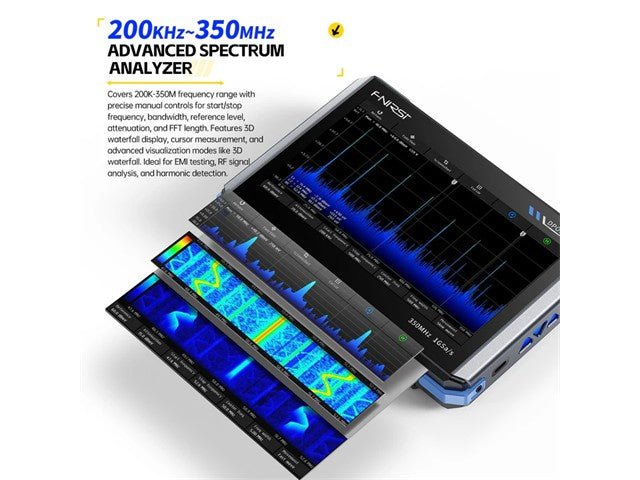

Spectrum Analyzer

Specification	Details
Conversion method	FFT
FFT length	4K ~ 32K
Frequency range	200KHz ~ 350MHz
Level range	-60dBmV ~ +260dBmV
Cursor measurement	Frequency / Amplitude
Marking parameter	Maximum energy harmonic
Waterfall chart	Supported
3D waterfall chart	Supported
Automatic adjustment	Supported
System calibration	Supported

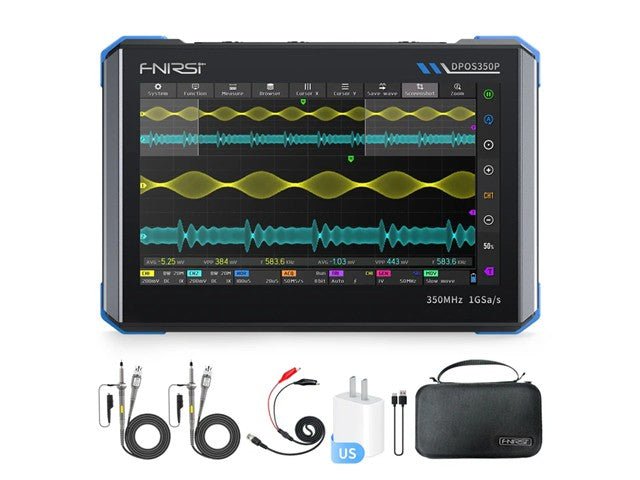

Package List

DPOS350P Host ×1
QC18W Fast Charger ×1 (US or EU Plug)
350MHz Probe ×2
Storage Bag ×1
Alligator Clip ×1
USB Data Cable ×1
User Manual ×1
Packing Box ×1

Special Precautions

Both probe ground clips must be connected together. Never connect to different potentials (e.g., separate ends of high-power/AC circuits). Doing so risks damaging the mainboard.
Maximum BNC input tolerance: 400V. Never exceed this on a 1X probe.
Always use the provided charger. Using test equipment power supplies or USB can cause ground loops and short-circuits.
For high-frequency, high-voltage signals: use 100X probes (ultrasonic welders/cleaners, etc.), or even 1000X probes (high-frequency transformers, induction heating, etc.).

Downloads

User Manual - FNIRSI DPOS350P 350MHZ 4IN1 SCOPE

Additional Information

Device	Oscilloscope
Type	350MHz \| 4-IN-1 \| Tablet
