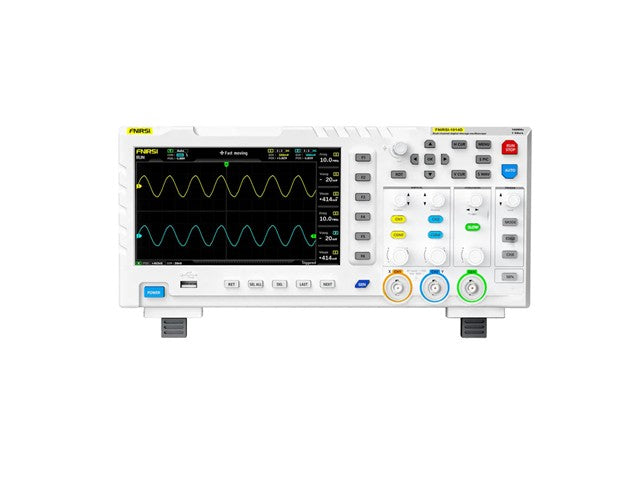

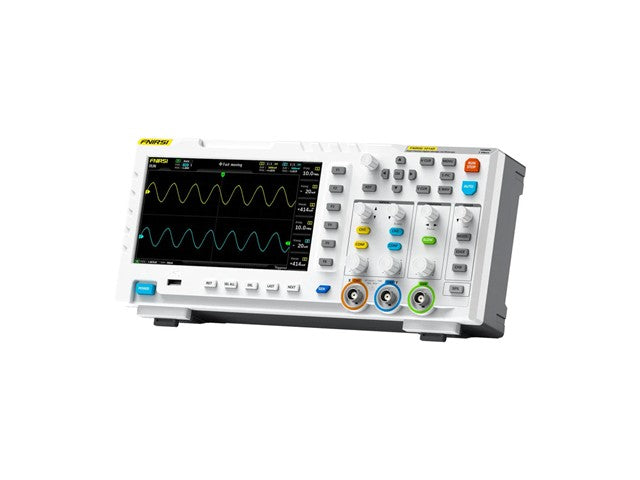

The 1014D is a 2 in 1 Benchtop Oscilloscope with 100MHZ Bandwidth and 1GSA/S Sampling Rate. It Records Up To 1000 Frames, Which Can Achieve Better Waveform Analysis Effects Through playback and Storage Functions

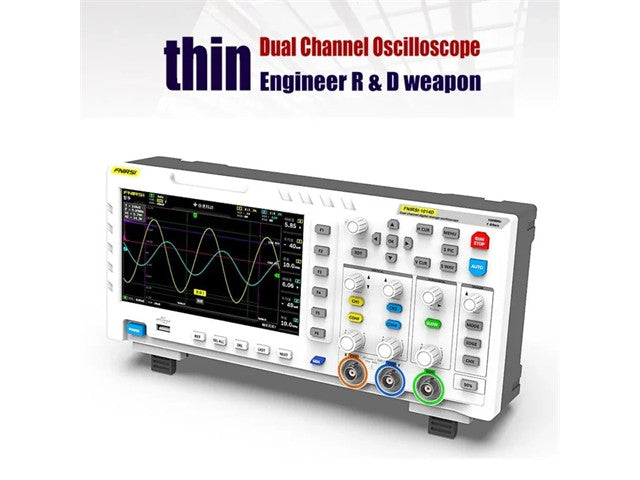

2 in 1 Benchtop Oscilloscope

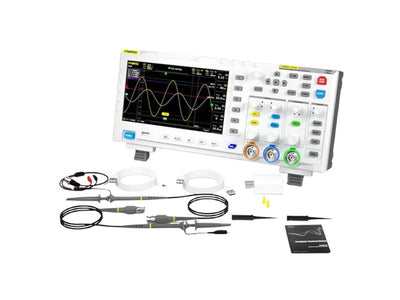

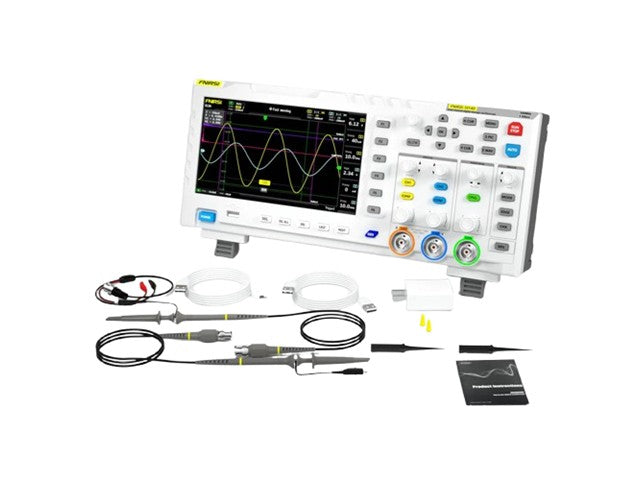

Overview

The 1014D is a 2 in 1 Benchtop Oscilloscope with 100MHz bandwidth and 1GSa/s sample . It record up to 1000 frames, which can achieve better waveform analysis effects through playback and storage functions. The 1014D built in 10MHz chopping wave Arbitrary Waveform Generator, which can support waveform clipping output at 2.5VPP. The 1014D feature are excellent performance, reliable quality, and a wide range of functions. It's ideal for R&D desiger to design and debugg electronic circuits, sutable for higher education & laboratory to teach and best choice for electrician to diagnosis for troubleshooting and maintaining.

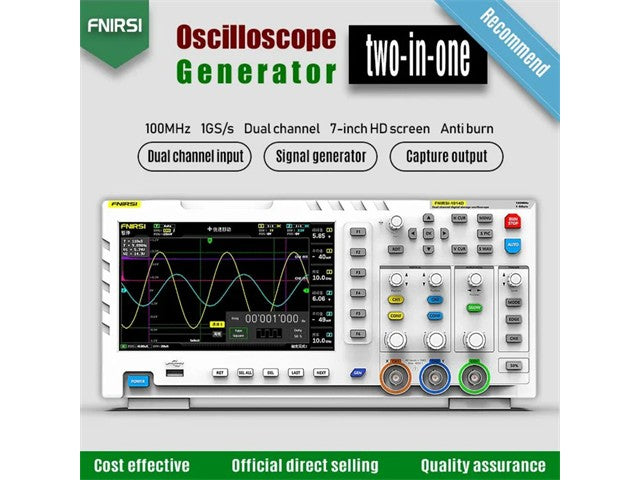

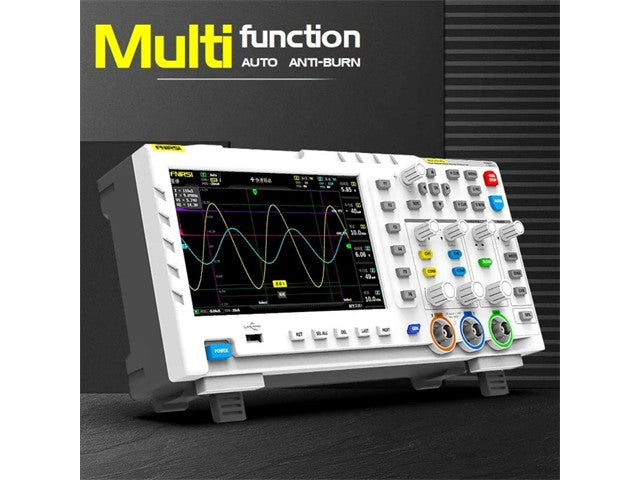

Features

Dual Channel
2 in 1: Digital Oscilloscope + DDS Function Signal Generator
1GSA/S sampling rate, 100MHz * 2 analog bandwidth.
Complete trigger function (single/normal/automatic).
Capable of storing up to 1000 customized chopping signals.
high-voltage protection module.
One-button AUTO and adaptive trigger (25%, 50%, 75%).
7-inch 800*480 resolution high-definition LCD screen.
Powerful Waveform Picture Manager.
One-key Screenshot and Saving.
Cursor measurement function.
USB Picture Export
Lissajous Graphic Display & FFT Viewing.
Ideal for both periodic analog and aperiodic digital signals.

Specifications

Channels	2
Material	High-quality ABS
Analog Bandwidth	100 MHz × 2
Sampling Rate	1 GSa/s
Vertical Sensitivity	50 mV/div ~ 500 V/div
Horizontal Timebase	50 s/div ~ 10 ns/div
Storage Depth	240 Kbit
Input Resistance	1 MΩ
ADC Precision	8 bits
Rise Time	< 3 ns
Coupling	AC/DC
Trigger Modes	Auto / Normal / Single
Trigger Edge	Rising Edge / Falling Edge
External Trigger Voltage	0–40 V
Maximum Test Voltage	40 V (1× probe), 400 V (10× probe)
Waveform Manager	Supports 1000 screenshots + 1000 waveforms
USB Export	Supported
Capture Output	Supported
Power Supply	5 V, 2 A / 3 A / 4 A
Frequency Precision	±0.01%
Roll Mode	Supported
One-button AUTO	Supported
Display	7-inch TFT LCD, 800 × 480 resolution, color
Dimensions	310 × 145 × 70 mm
Measurement Parameters	12 types
Signal Generator	14 waveform types

Downloads

Datasheet - FNIRSI DSO1014D DUAL CH 100MHZ

Additional Information

Device	Oscilloscope
Type	2 in 1 \| Benchtop

Experience precision with the FNIRSI DSO1014D Dual Channel 100MHz Oscilloscope. This versatile 2-in-1 device features a 1GSa/s sampling rate and advanced waveform analysis capabilities, making it perfect for R&D, education, and troubleshooting. Capture up to 1000 frames for detailed insights, and enjoy the convenience of a high-definition LCD display and intuitive controls. Elevate your electronic circuit design and diagnostics today!

Very nice oscilloscope

Very nice oscilloscope , well made. Works very well .
Thank you

This is definately not a 100Mhz scope as advertised on your website

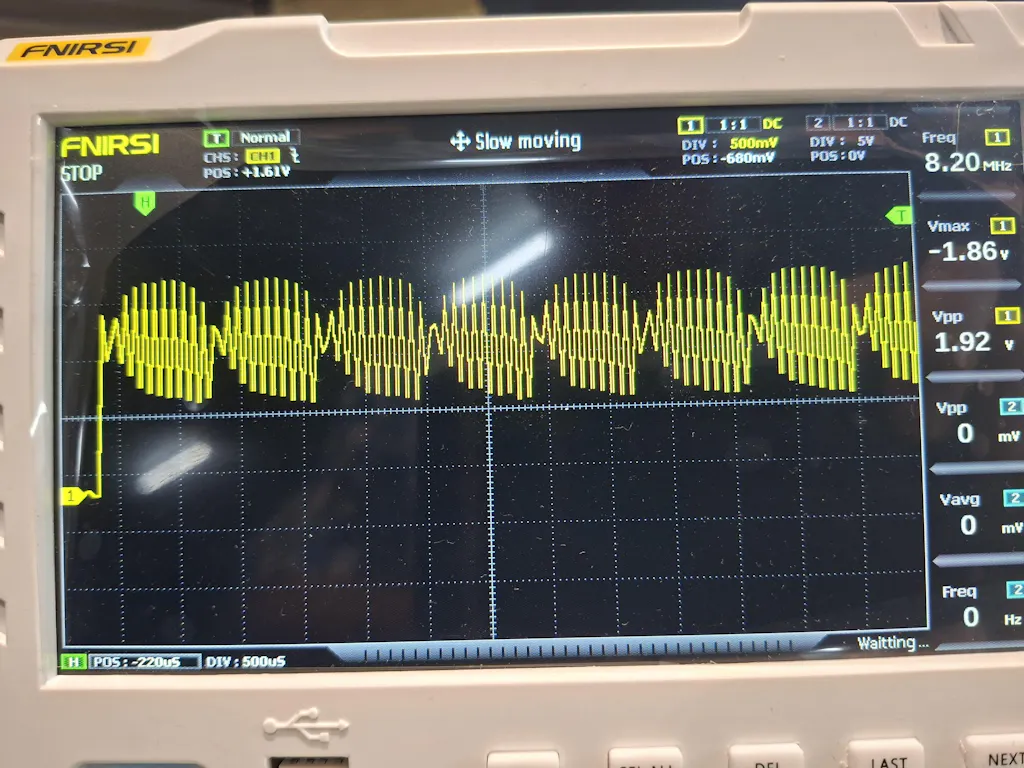

This is definately not a 100Mhz scope as advertised on your website and even with only 1 channel used it battles to properly read a useful 25mhz signal if not pure sinewave. Really a big dissapointment. 1Gs/sec - not sure where this information was calculated or where it is coming from or how that rates was used from as the waveform gets really distorted due to an addequite sampling rate when higher frequencies are measured. Tried to even measure a tv remote control IR Led without any useful data that can saved.
