FNIRSI DSOTC4 ONE CH 10MHZ 3IN1

Name: FNIRSI DSOTC4 ONE CH 10MHZ 3IN1 - Communica [Part No: FNIRSI DSOTC4 ONE CH 10MHZ 3IN1]
Brand: Fnirsi
SKU: FNIRSI DSOTC4 ONE CH 10MHZ 3IN1
Price: 1260.87 ZAR
Availability: InStock

SKU: FNIRSI DSOTC4 ONE CH 10MHZ 3IN1

BRAND: Fnirsi

In Stock
R 1,450.00_{(inc VAT)}
R 1,260.87_{(ex VAT)}

Collections: New Arrivals, Test & Measurement

Type: Oscilloscopes

Category: Hand-held Oscilloscopes, New

>DSO-TC4 IS A 3-IN-1 Handheld Digital Oscilloscope+ Signal GEN+ Transistor Tester. It has a Single Channel Oscilloscope WITH A 10MHz Bandwidth and 48MSA/S Sampling Rate. (Does Not Include FNIRSI P6100 X1 X10 SCOPE PROBE and BDD OS

Digital Oscilloscope Transistor Tester Signal Generator

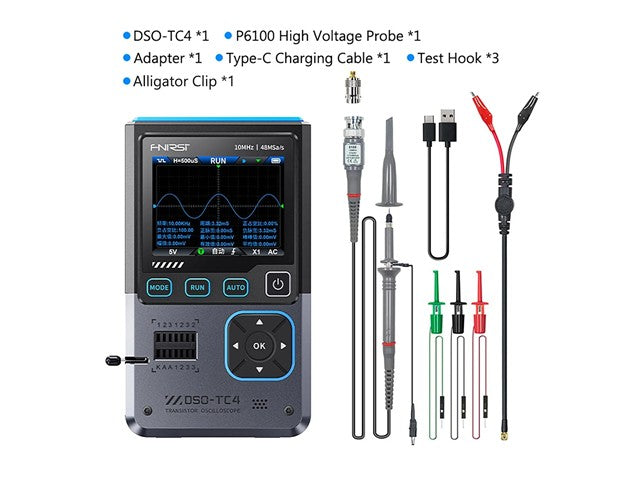

Overview

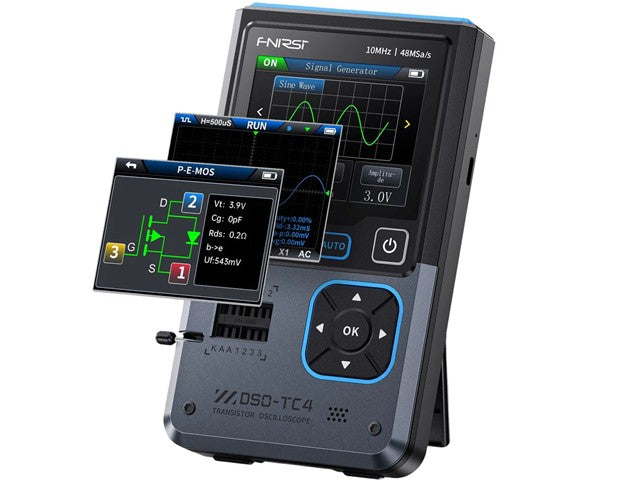

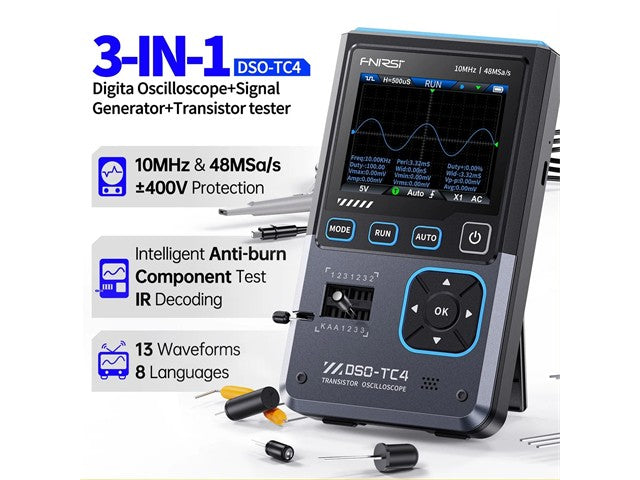

DSO-TC4 is a multifunctional transistor oscilloscope launched by FNIRSI, which is comprehensive and practical, and is designed for the maintenance and R&D industries. It integrates an oscilloscope, a signal generator, and a transistor.

Features

Oscilloscope functions:

Sampling rate: 48MSa/s
Analog bandwidth: 10MHz
Voltage protection: ±400V
Waveform storage: supports screenshot saving and viewing, which is convenient for data analysis

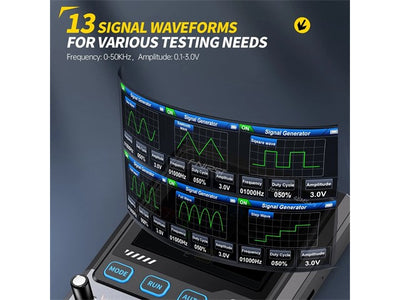

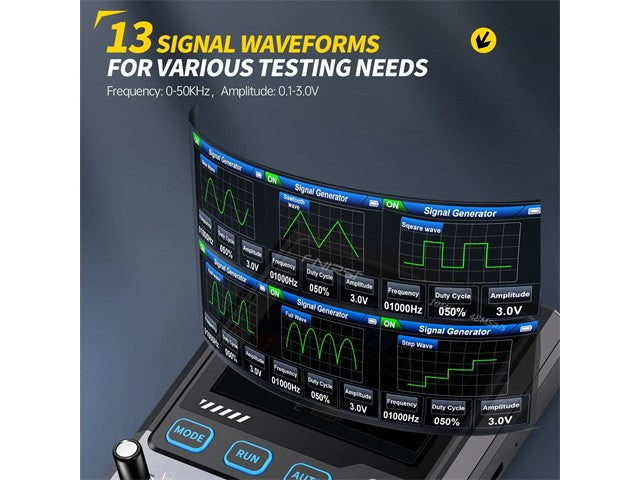

Signal generator function:

Supports 13 waveform outputs, frequency range 0-50KHz, output voltage adjustable 0-3v.
Output parameters (frequency, amplitude, duty cycle) are adjustable, flexible to meet various needs

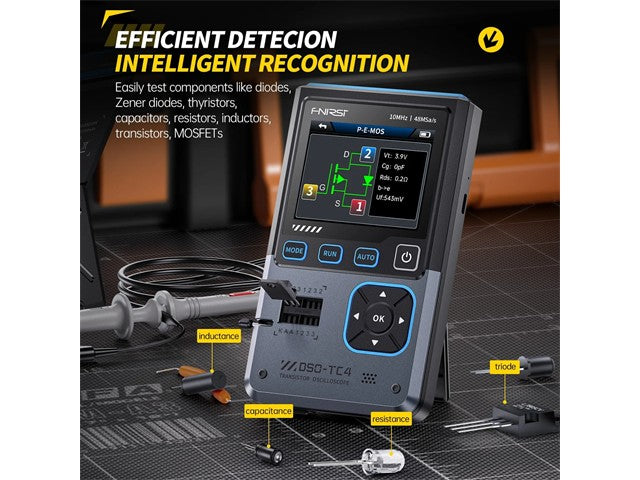

Transistor function:

High efficiency: Automatically identify the type and pin arrangement of the tested component, simplify the operation process, and improve test efficiency
Diverse categories: Detect and analyze the performance and characteristics of semiconductor components such as transistors, diodes, triodes, field effect (FET), etc

Portable design:

Equipped with a 2.8-inch TFT color screen, the picture is clear and intuitive
Built-in high-capacity rechargeable lithium battery (1500mAh), standby time 4 hours
Small and light, suitable for mobile use.

Specifications

Main Parameters

Brand	FNIRSI
Model	DSO-TC4
Screen	2.8-inch TFT Color Screen
Backlight	Brightness Adjustable
Power Supply	Type-C (5V / 1A)
Battery	3.7V / 1500mAh
Languages	Chinese, English, German, Portuguese, Japanese, Spanish, Korean, Russian
Size	≈ 90 × 142 × 27.5 mm
Product Weight	≈ 186 g

Oscilloscope Parameters

Real-Time Sampling Rate	48 MSa/s
Analog Bandwidth	10 MHz
Input Impedance	1 MΩ
Coupling Mode	AC / DC
Test Voltage Range	1:1 Probe: 80Vpp (+40V) 10:1 Probe: 800Vpp (+400V)
Vertical Sensitivity	10mV/div ~ 10V/div (X1 range)
Vertical Displacement	Adjustable with indication
Time Base Range	50ns ~ 20s
Trigger Mode	Auto / Normal / Single
Trigger Type	Rising edge, Falling edge
Trigger Level	Adjustable with indication
Waveform Freeze	Yes (HOLD function)
Automatic Measurement	Max, Min, Avg, RMS, Vpp, Frequency, Cycle, Duty Cycle

Component Testing

Transistor	hfe, Ube, Ic/Ie, Iceo, Ices, Uf
Diode	Forward voltage drop <5V, junction capacitance, reverse leakage current
Zener Diode	0.01 ~ 32V reverse breakdown voltage
Field-Effect Transistor (FET)	JFET: Cg, Id, Uf IGBT: Id, Uf MOSFET: Vt, Cg, Rds, Uf
Unidirectional SCR	Trigger voltage <5V, gate level
Bidirectional SCR	Trigger current <6mA
Capacitor	25pF ~ 100mF, capacitance, loss factor (Vloss)
Resistor	0.01Ω ~ 50MΩ
Inductor	10μH ~ 1000μH, DC resistance
DS18B20	Temperature sensor (GND, DQ, VDD)
DHT11	Temperature & humidity sensor (VDD, DATA, GND)

Signal Generator Parameters

Output Waveform	Supports 13 waveform types
Waveform Frequency	0 – 50 kHz
Square Wave Duty Cycle	0 – 100%
Waveform Amplitude	0.1V – 3.0V
