Overview

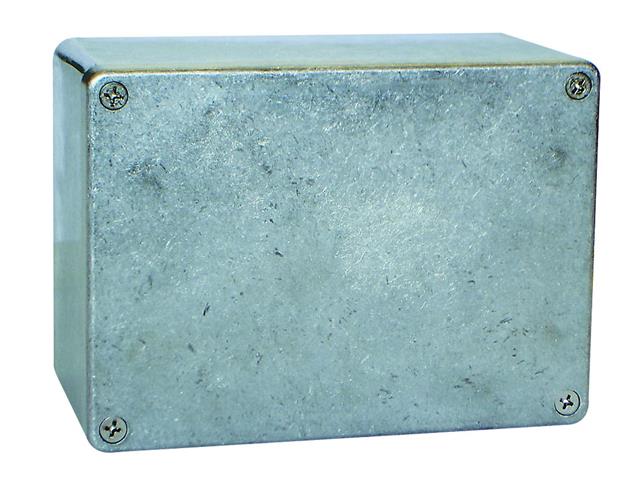

G111 — Sealed enclosure natural aluminum color, production is made of aluminum alloy ADC-10 (JIS). Provides protection against dust and moisture according to the standard IP65. Overall dimensions are: length 115mm, width 65mm, height 55mm. On the inner surface of the case cast stand for the horizontal and guides for vertical PCB mounting.
Specifications
- Material : Aluminum
- Color : Natural
- Hull type : g111
- Temperature range,C : -40... 90
- Features : cast airtight
- Width, mm : 115
- Depth, mm : 65
- Height, mm : 55
Additional Information
Device |
Enclosure |
Type |
Aluminium | Natural |
