GDME2011 TIMER BK

Name: GDME2011 TIMER BK - Communica [Part No: GDME2011 TIMER BK]
Brand: Hirschmann
SKU: GDME2011 TIMER BK
Price: 2341.96 ZAR
Availability: InStock

SKU: GDME2011 TIMER BK

BRAND: Hirschmann

In Stock
R 2,693.25_{(inc VAT)}
R 2,341.96_{(ex VAT)}

Collections: Connectors

Type: Rectangular Connectors

Category: Solenoid Valve Connectors DIN43650

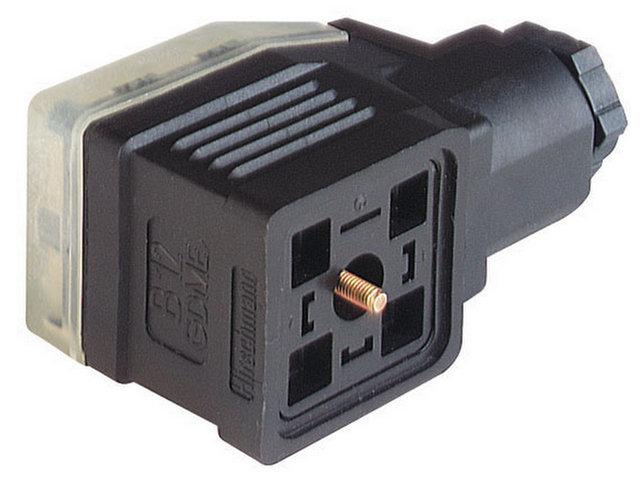

Valve Connector - Cube Female DIN43650-A - 3 Pole + Earth with Timer for Electronic Insert 2A 48VAC/24VDC PG11 IP65 4 - 11mm OD Cable Entry Black (933719100)

Timer Schwarz Cable Socket

Overview

Cable socket with times may be set independently of one another by means of potentiometer, 8 diff. Switching progr. With function indicator (LED) and integral protective wiring and gasket

Feature(s)

with Timer

Specifications

Number of Contacts : 3 + PE
Cable Gland : PG 11 (black)
Conductor size : Max. 1.5 mm²
Standard : DIN EN 175 301-803-A
Housing Color : Black, with transparent cover
Construction : Type A

Technical data

Pin dimensions : 6.3 mm x 0.8 mm, 4.8 mm x 0.8 mm
Rated voltage : AC 48 V / DC 24 V
Rated current : 2 A
Contact resistance :<= 4 mOhm
Type of termination : screw
Suitable cables : 4.5 mm to 11 mm diameter
Mounting : central nut

Material

Contact Surface Material : Sn
Contact Bearer Material : PA
Housing Material : PA

Environmental conditions

Protection class (IEC 60529) : IP 65 (gasket necessary)
Pollution Severity : 3
Temperature Range : -30 ºC to +60 ºC

Inflammability class

Housing : 94 V1
Contact Bearer : 94 V1

Downloads

Datasheet - GDME 2011 TIMER

Additional Information

Group0	Rectangular
Group	Rectangular Connector
Device	Cable Socket
Type	Timer Schwarz
No. of Contacts	4
No. of Pins	2
Colour	Black
Series	GM Series
Termination	Screw
Contact Resistance	> 4 mOhm
Degree of Protection	IP65
