10~35M (Adjustable) Long Range Outdoor Pir Detector

Long Range Outdoor Pir Detector

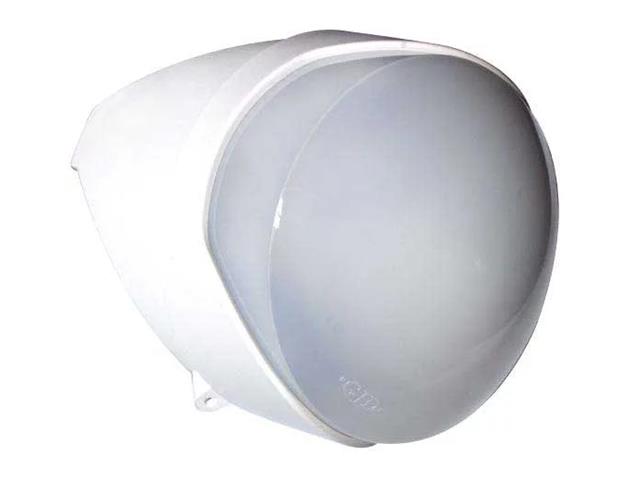

The MX35 external PIR is a low cost, reliable, outdoor, low voltage infrared detector, designed for event driven alarm and CCTV applications.


  • Reliable outdoor low voltage passive infrared detector designed for event driven alarm and CCTV applications
  • Tamper protection to prevent unauthorised re-alignment
  • Adjustable range from 10 to 35m with a maximum coverage of 750m²
  • Dual axis tilt module allowing 180º pan and 90º tilt: increasing the speed of installation and accurate aiming of the detection pattern
  • Acrylic coated electronics module for additional component stability
  • Vandal resistant high impact ABS housing
  • The combination of precision electronics, digital white light filter and double shielding eliminates false alarms from the sun and other visible light sources
  • Concealed wiring and no visible indication of the orientation of the detector head
  • Selectable pulse count for short and long range sensitivity adjustment ensuring high immunity to false alarms
  • Beam masking option for pet immune applications
  • Tamper and alarm volt free contacts
  • IP55 housing UV stabilised front cover ensures that the sensor is impervious to and unaffected by rain, wind and sand
  • Operational between -20º and +55ºC
  • Mounting height variable up to 6m, optimal @ 3m


Additional Information

Device PIR Detector
Type Long Range | Outdoor
