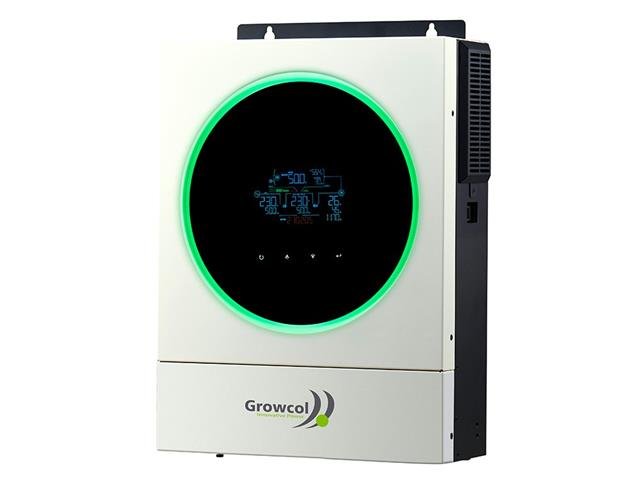

Growcol Pure Sine Wave Inverter 3600VA/3600W 24VDC, O/P:230VAC, Max PV:4000W OCV:500VDC, Surge Power 7200VA, Built-in MPPT, Max Solar Chrge Current 120A, Max Chrge Current 100A, Max AC Chrge Current 100A, USB/RS232/RS485/WiFi, 119x313X422mm, 10kg
Pure Sine Wave Inverter
Feature
- Customizable status LED ring with RGB lights
- Touchable button with 4.3" colored LCD
- Built-in Wifi for mobile monitoring (App is available)
- Supports USB On-the-Go function
- Data log events stored in the inverter
- Reserved communication port (RS485, CAN-BUS or RS232) for BMS
- Battery independent design
- Battery equalization extends lifecycle
- User-friendly LCD operation
- Enhanced charging power
- Built-in anti-dust kit
Specifications
- Rated Power : 3600VA/3600W
- Battery Voltage : 24VDC
- Voltage : 230VAC
- Maximum PV Array Power : 4000W
- Open Circuit Voltage : 500VDC
- Surge Power : 7200VA
- Max Solar Charge Current : 120A
- Max Charge Current : 100A
- Max AC Charge Current : 100A
- Dimensions : 119x313X422mm
- Weight : 10kg
Downloads
Additional Information
| Device |
Inverter |
| Type |
Pure Sine Wave |
Experience reliable power with the GRW 3K6 24VDC Pure Sine Wave Inverter, delivering 3600W output and 7200W surge power. With built-in WiFi for mobile monitoring and enhanced charging capabilities, this inverter ensures optimal energy efficiency for your home or RV. Its compact design and customizable LED display make it a perfect blend of performance and convenience.
