GW5048D-ES

SKU: GW5048D-ES

BRAND: Goodwe


Goodwe Hybrid Inverter Single Phase 48VDC 4600W 24.5 Max AC Current, O/P:230VAC,2 X MPPT 125~550V Max 580VDC, Max Charge Current:100A, Max PV:6500W, AC O/P Data (Backup 4600VA) Peak PWR:6900, 10Sec, USB, RS485, CAN, WIFI, (516x440x184mm) IP65, 30kg

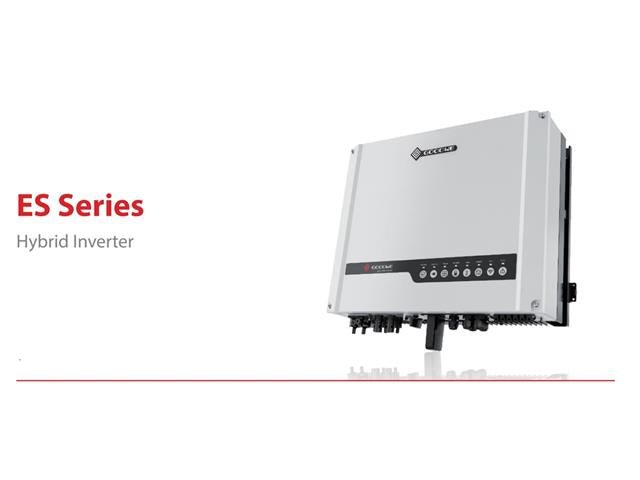

Hybrid Inverter Single Phase

Overview

The GoodWe ES series bi-directional energy storage inverter can be used for both on-grid and off-grid PV systems. During the day, the PV array generates electricity which can be provided either to the loads, fed into the grid or charge the battery, depending on the economics and set-up. The electricity stored can be released when the loads require it during the night. Additionally, the power grid can also charge the storage devices via the inverter.
