H3A-BK-1L/W-MCV/S

Name: H3A-BK-1L/W-MCV/S - Communica [Part No: H3A-BK-1L/W-MCV/S]
Brand: Wain
SKU: H3A-BK-1L/W-MCV/S
Price: 118.80 ZAR
Availability: InStock

SKU: H3A-BK-1L/W-MCV/S

BRAND: Wain

R 136.62_{(inc VAT)}
R 118.80_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Housings & Hoods

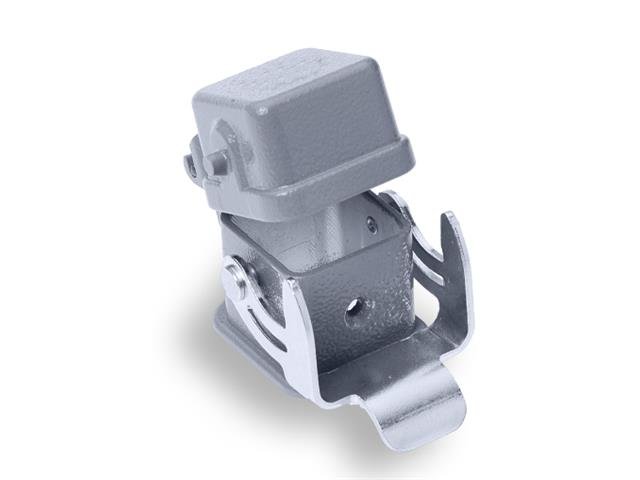

Flange Housing Metal with Seal, Metal Cover & 1 Locking Lever Top Entry For "3A" Series. IP65

Flange Housing Metal

Specifications

Material	Zinc die-cast
Colour	Grey(RAL 7037)
Locking element
---Lever type	metal elastic pressing
---Material	metal galvanized/nickel plating
Hoods/Housing sealing	NBR
Limiting temperatures	-40℃...+125℃
Flammability acc.to UL 94	V0
Degree of protection acc.to EN 60529 for coupled connector	IP65

Downloads

Datasheet - H3A-BK-1L/W-MCV/S

Additional Information

Device	Housing
Type	Flange \| Metal
Highlights	with Seal

Upgrade your connectivity with the H3A-BK-1L/W-MCV/S Flange Housing. Crafted from durable zinc die-cast and designed for the "3A" Series, this IP65-rated metal housing ensures superior protection against dust and moisture. With a reliable locking lever and resilient sealing, it stands strong in extreme temperatures from -40℃ to +125℃, making it the ideal choice for robust applications.
