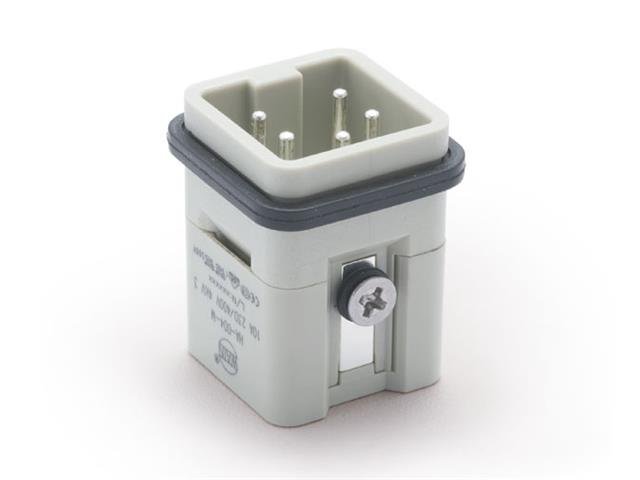

Series 3A Insert 4P+E - Size 3A - Male Screw Termination 10A/230/400V = 09200042611

Series 3A Insert 4P+E

Feature(s)

Suitable Coding Element isCODE-Q3

Suitable Plastic Hoods, Housings and Covers with Seal Grey M20

H3A.P-BK-1L
H3A.P-CCT-1L-M20 3
H3A.P-SF-1L-M20
H3A.P-SE/S-2B-M20
H3A.P-TE/S-2B-M20
H3A-CV/S-2B/1
H3A-CV/S-2B/2
H3A-CV-1L/1M
H3A-CV-1L/1F

Suitable Plastic Hoods/Housings No Seal Grey M20

H3A.P-SE-2B-M20
H3A.P-TE-2B-M20
H3A.P-BK-1L-SE

Suitable Metal Hoods/Housings No Seal M20/M25

H3A-SEH-2B-M25
H3A-SEHC-2B-M20
H3A-TE-2B-M25

Suitable Metal Hoods/Housings with Seal M20

H3A-TE/S-2B-M20
H3A-BK-1L/W
H3A-BK-1L/W-MCV/S
H3A-SF-1L/W-M20
H3A-CCT-1L/W-M20

Specifications

Inserts
Number of contacts 4+PE
Electrical data acc. to EN 61 984
---Rated current 10A
---Rated voltage conductor 230/400V
---Rated impulse voltage 4kV
---Pollution degree 3
---or 10A 250V 4kV 3
Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤1mΩ
Screw terminal
---Wrie gauge 0.75-1.5mm2
---AWG 18-16
---Tightening/Test torque 0.25N·m

Additional Information

Device Insert
Type Series 3A | 4P+E
