HA-010-F/B

Name: HA-010-F/B - Communica [Part No: HA-010-F/B]
Brand: Wain
SKU: HA-010-F/B
Price: 230.58 ZAR
Availability: InStock

SKU: HA-010-F/B

BRAND: Wain

R 265.17_{(inc VAT)}
R 230.58_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

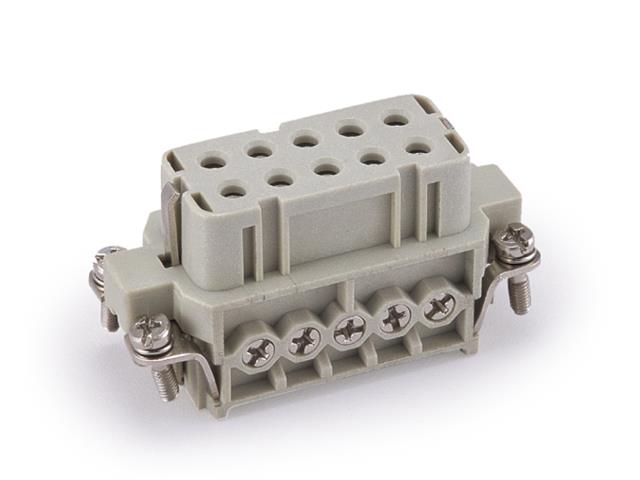

Series 10A Insert 10P+E - Size 10A - Female Screw Termination w/Wire Protection 16A/250V = 09200102812

Series 10A Insert 10P+E

Feature(s)

10A Metal Hoods/Housings 1 Lever

H10A-BK-1L/SC-T
H10A-BK-1L/SC-CV
H10A-SF-1L/SC-CV-2M20
H10A-MCV-1L/SC.1
H10A-MCV-2B/2S
H10A-SE-2B-M20
H10A-TE-2B-M20
H10A-CCT-1L/SC-M20

Specifications

Inserts
Number of contacts	10+PE
Electrical data acc. to EN 61 984
---Rated current	16A
---Rated voltage conductor	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---or	16A 230/400V 4kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤1mΩ
Screw terminal
---Wrie gauge	0.75-2.5mm²
---AWG	18-14
---Tightening/Test torque	0.25N·m

Additional Information

Device	Insert
Type	Series 10A \| 10P+E

Upgrade your electrical connections with the HA-010-F/B Series 10A Insert. Designed for safety and durability, this female screw termination provides reliable performance at 16A/250V, with exceptional insulation resistance and a robust construction that withstands extreme temperatures. Ideal for professional and DIY projects, ensure your wiring is secure and efficient with this high-quality insert.
