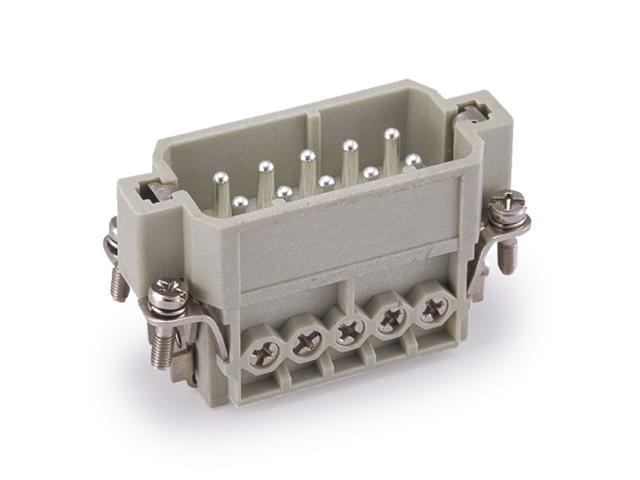

HA-010-M/B

SKU: HA-010-M/B

BRAND: Wain


Series 10A Insert 10P+E - Size 10A - Male Screw Termination w/Wire Protection 16A/250V = 09200102612

Series 10A Insert 10P+E

Feature(s)

Specifications

Inserts
Number of contacts 10+PE
Electrical data acc. to EN 61 984
---Rated current 16A
---Rated voltage conductor 250V
---Rated impulse voltage 4kV
---Pollution degree 3
---or 16A 230/400V 4kV 2
Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤1mΩ
Screw terminal
---Wrie gauge 0.75-2.5mm2
---AWG 18-14
---Tightening/Test torque 0.25N·m

Additional Information

Device Insert
Type Series 10A | 10P+E
