HA-016-F/B

Name: HA-016-F/B - Communica [Part No: HA-016-F/B]
Brand: Wain
SKU: HA-016-F/B
Price: 280.22 ZAR
Availability: InStock

SKU: HA-016-F/B

BRAND: Wain

R 322.25_{(inc VAT)}
R 280.22_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

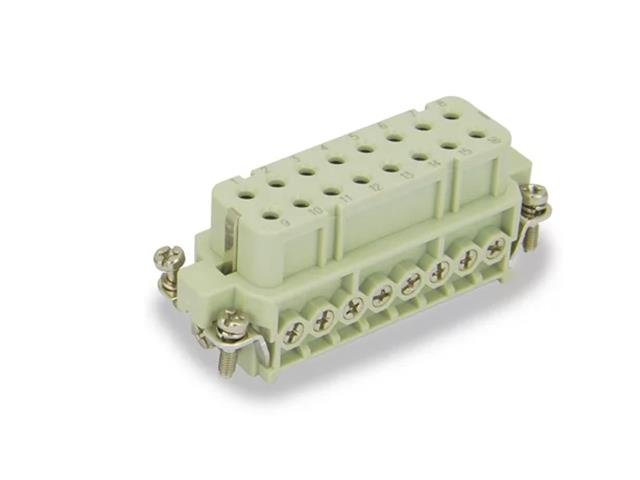

Series 16A Insert 16P+E - Size 16A - Female Screw Termination with Wire Protection 16A/250V = 09200162812

Series 16A Insert 16P+E

Feature(s)

Suitable Hoods, Housings and Covers

H16A-SE-2B-M20
H16A-SEH-2B-M25
H16A-TE-2B-M20
H16A-BK-1L/SC-CV
H16A-SF-1L/SC-M25
H16A-MCV-1L/SC.1
H16A-MCV-2B/1S
H16A-MCV-2B/2S

Specifications

Technical characteristics
international standard：	IEC60664-1、IEC61984
Number of contacts：	3+PE、4+PE、10+pe、16+pe、32+PE
Insert
Rated impulse voltage	4kV
Pollution degree	3
Insulation resistance	≥10^10 Ohm
Material(insert)	polycarbonate
Limiting temperaures	-40°C~125°C
Flammability (insert) acc.to UL 94	V-0
Rated voltage acc.to UL/CSA	600V
Mating cycles	≥500
Contact pin
Material(contact)	Copper Alloy
Surface	Silver or Gold Plated
Contact resisance	≤1mΩ
Terminal	Screw
Wire gauge	0.75-2.5mm^2 18-14AWG
Stripping length	7.5mm^2
Terminal	Crimp
Wire gauge	0.14-4mm^2 26-12AWG
Stripping length	7.5mm^2

Additional Information

Device	Insert
Type	Series 16A \| 16P+E

Discover the HA-016-F/B Series 16A Insert, designed for reliable performance with 16P+E connections. Featuring robust screw terminations and wire protection, this durable insert ensures safe and efficient power delivery in demanding environments. Compatible with various hoods and housings, it's the perfect choice for your electrical needs.
