HA-016-FC

Name: HA-016-FC - Communica [Part No: HA-016-FC]
Brand: Wain
SKU: HA-016-FC
Price: 222.93 ZAR
Availability: InStock

SKU: HA-016-FC

BRAND: Wain

R 256.37_{(inc VAT)}
R 222.93_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

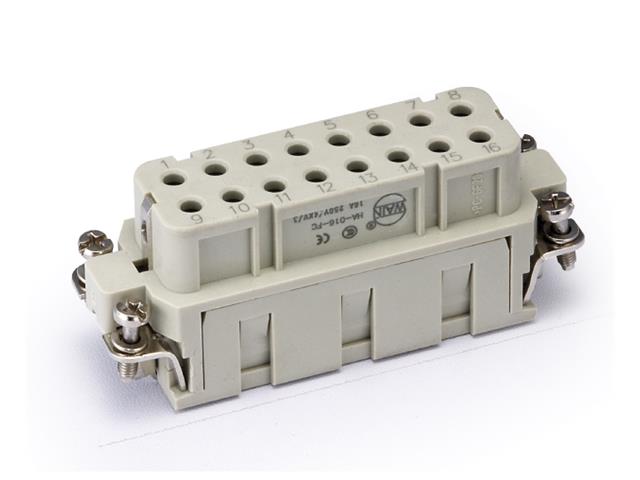

Series 16A (C) Insert 16P+E - Size 16A - Female Crimp Termination 16A/250V = 09200163101

Series 16A (C) Insert 16P+E

Specifications

Inserts
Number of contacts	16+PE
Electrical data acc. to EN 61 984
---Rated current	16A
---Rated voltage conductor	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	16A 230/400V 4kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤1mΩ
Crimp terminal
---Wrie gauge	0.14-4.0mm²
---AWG	26-12

Additional Information

Device	Insert
Type	Series 16A (C) \| 16P+E

Enhance your electrical connections with the HA-016-FC Series 16A Insert. This durable female crimp termination offers a reliable 16A/250V rating, ensuring optimal performance in demanding environments. With excellent insulation resistance and a robust design, it guarantees safety and longevity for your projects. Upgrade today for dependable and efficient electrical solutions!
