HA-016-M/B

Name: HA-016-M/B - Communica [Part No: HA-016-M/B]
Brand: Wain
SKU: HA-016-M/B
Price: 265.23 ZAR
Availability: InStock

SKU: HA-016-M/B

BRAND: Wain

R 305.01_{(inc VAT)}
R 265.23_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

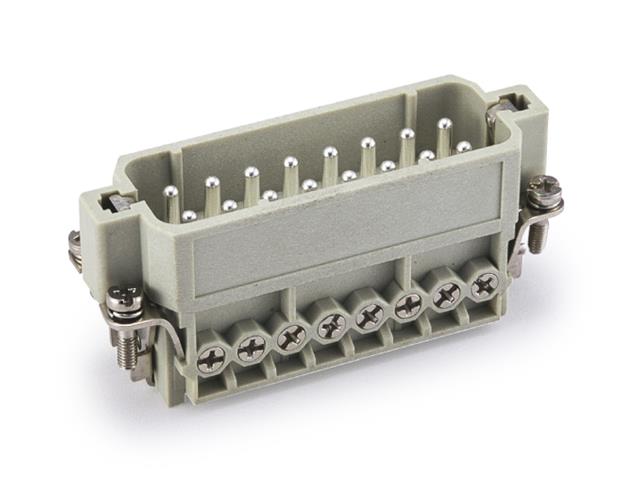

Series 16A Insert 16P+E - Size 16A - Male Screw Termination w/Wire Protection 16A/250V = 09200162612

Series 16A Insert 16P+E

Feature(s)

Suitable Hoods, Housings and Covers

H16A-SE-2B-M20
H16A-SEH-2B-M25
H16A-TE-2B-M20
H16A-BK-1L/SC-CV
H16A-SF-1L/SC-M25
H16A-MCV-1L/SC.1
H16A-MCV-2B/1S
H16A-MCV-2B/2S

Specifications

Inserts
Number of contacts	16+PE
Electrical data acc. to EN 61 984
---Rated current	16A
---Rated voltage conductor	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---or	16A 230/400V 4kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤1mΩ
Screw terminal
---Wrie gauge	0.75-2.5mm²
---AWG	18-14
---Tightening/Test torque	0.5N·m

Additional Information

Device	Insert
Type	Series 16A \| 16P+E

Discover the HA-016-M/B Series 16A Insert, designed for reliability with a 16A/250V rating and robust male screw termination. Perfect for high-performance applications, its durable polycarbonate construction ensures safety and longevity, while the hard-gold and silver plated contacts provide excellent conductivity. Upgrade your connections with this versatile, high-quality insert that meets stringent electrical standards.
