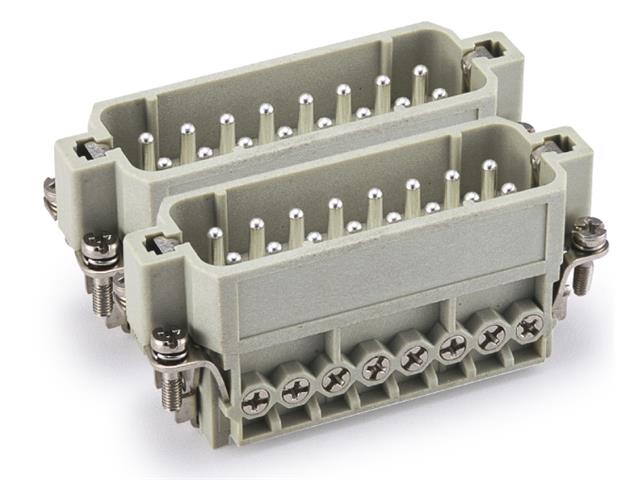

HA-016-M/B(17-32)

Name: HA-016-M/B(17-32) - Communica [Part No: HA-016-M/B(17-32)]
Brand: Wain
SKU: HA-016-M/B(17-32)
Price: 278.49 ZAR
Availability: InStock

SKU: HA-016-M/B(17-32)

BRAND: Wain

R 320.26_{(inc VAT)}
R 278.49_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

Series 32A Insert 16P+E - Size 32A - Male Screw Termination w/Wire Protection 16A/250V -Numbered 17 - 32 = 09200162613

Series 32A Insert 16P+E

Feature(s)

Suitable Hoods, Housings and Covers refer the Following

32A Metal Hoods/Housings 2 Lever

W32A-SE-4B-M25
W32A-SEH-4B-M32
W32A-TEH-4B-M25
W32A-TEH-4B-M32
W32A-BK-2L/SC
H32A-SF-2L/SC-2M32

Specifications

Inserts
Number of contacts	32(2x16)+PE
Electrical data acc. to EN 61 984
---Rated current	16A
---Rated voltage conductor	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---or	16A 230/400V 4kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤1mΩ
Screw terminal
---Wrie gauge	0.75-2.5mm²
---AWG	18-14
---Tightening/Test torque	0.5N·m

Downloads

Datasheet - HA-016-M/B(17-32)

Additional Information

Device	Insert
Type	Series 32A \| 16P+E

Discover the HA-016-M/B(17-32) Series 32A Insert, designed for reliable performance with 16A/250V capacity. Its durable polycarbonate construction and hard-gold plated contacts ensure long-lasting functionality, making it ideal for various industrial applications. Upgrade your connectivity with this high-quality, efficient solution today!
