HA-016-MC

SKU: HA-016-MC

BRAND: Wain

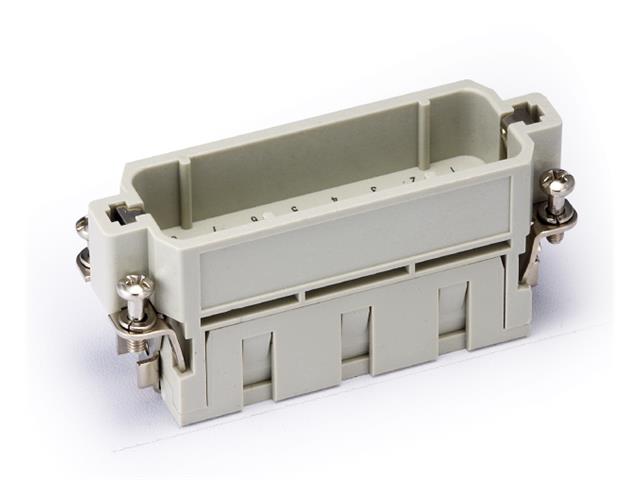

Series 16A (C) Insert 16P+E - Size 16A - Male Crimp Termination 16A/250V = 09200163001

Series 16A (C) Insert 16P+E

Feature(s)

Specifications

Inserts
Number of contacts 16+PE
Electrical data acc. to EN 61 984
---Rated current 16A
---Rated voltage conductor 250V
---Rated impulse voltage 4kV
---Pollution degree 3
---Pollution degree 2 also 16A 230/400V 4kV 2
Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤1mΩ
Crimp terminal
---Wrie gauge 0.14-4.0mm²
---AWG 26-12

Additional Information

Device Insert
Type Series 16A (C) | 16P+E
