HA-016-MC(17-32)

Name: HA-016-MC(17-32) - Communica [Part No: HA-016-MC(17-32)]
Brand: Wain
SKU: HA-016-MC(17-32)
Price: 233.54 ZAR
Availability: InStock

SKU: HA-016-MC(17-32)

BRAND: Wain

In Stock
R 268.57_{(inc VAT)}
R 233.54_{(ex VAT)}

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

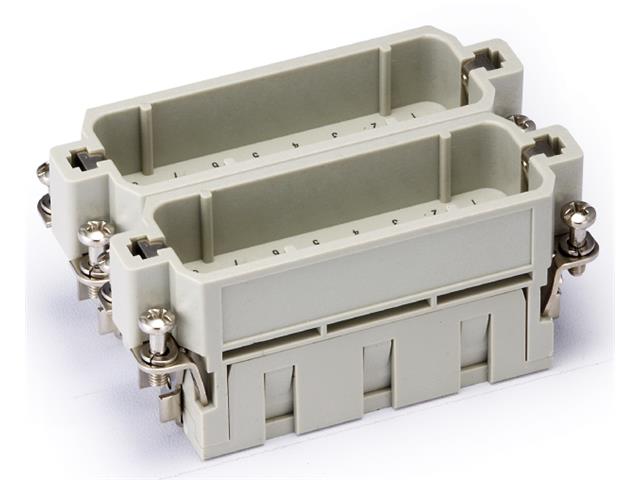

Series 32A (C) Insert 16P+E - Size 32A - Male Crimp Termination 16A/250V -Numbered 17 - 32 = 09200163011

Series 32A (C) Insert 16P+E

Feature(s)

Suitable Hoods, Housings and Covers refer the Following

32A Metal Hoods/Housings 2 Lever

W32A-SE-4B-M25
W32A-SEH-4B-M32
W32A-TEH-4B-M25
W32A-TEH-4B-M32
W32A-BK-2L/SC
H32A-SF-2L/SC-2M32

Specifications

Product parameters

Inserts
Number of contacts	32(2x16)+PE
Electrical data acc. to EN 61 984
---Rated current	16A
---Rated voltage conductor	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	16A 230/400V 4kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤1mΩ
Crimp terminal
---Wrie gauge	0.14-4.0mm²
---AWG	26-12

Additional Information

Device	Insert
Type	Series 32A (C) \| 16P+E
