Overview

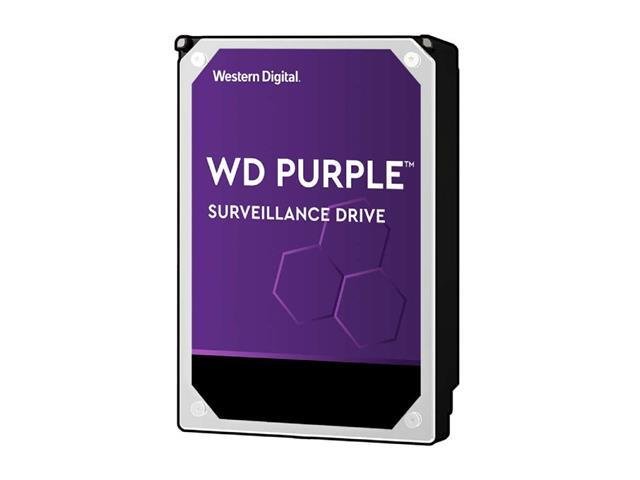

WD PurpleTM drives are designed to meet the challenges of 24x7 video surveillance
recording. These drives are engineered specifically for surveillance to help withstand
the elevated heat fluctuations and equipment vibrations within NVR environments. An
average desktop drive is built to run for only short intervals, not the harsh 24/7 always-
on environment of a high-definition surveillance system. With WD Purple drives, you
get reliable, surveillance-class storage that’s tested for compatibility in a wide range
of security systems. Exclusive WD AllFrameTM
technology helps reduce frame loss and
improve overall video playback.
Specifications
- Model Number : WD10PURZ
- Formatted capacity1 : 1TB
- Form factor : 3.5-inch
- Advanced Format (AF) : Yes
- Recording Technology : CMR
- RoHS compliant2 : Yes
Product Features
- Cameras supported3 : Up to 64
- Maximum Drive Bays Supported : 8
- Firmware Feature Name : AllFrame
- Tarnish resistant components : No
- RV Sensors : No
Performance
- Interface transfer rate (max)4 Buffer to host Host to/from drive (sustained)5 : 6 Gb/s 110 MB/s
- Cache (MB)1 : 64
Reliability/Data Integrity
- Load/unload cycles6 : 300,000
- Annualized workload rating7 : 180TB/yr
- Non-recoverable read errors per bits read : <1 in 10^14
- MTBF8 : 1,000,000
- Limited warranty (years)9 : 3
Power Management10
- Average power requirements (W) Read/Write : 3.8
- Idle : 3.2
- Standby and Sleep : 0.6
Environmental Specifications
- Temperature (°C, on the base casting) Operating Non-operating : 0 to 65 -40 to 70
- Shock (Gs)
- Operating (2 ms, read/write) : 30
- Operating (2 ms, read) : 65
- Non-operating (2 ms) : 0.6
Physical Dimensions
- Height (in./mm, max) : 1.028/26.1
- Length (in./mm, max) : 5.787/147
- Width (in./mm, ± .01 in.) : 4/101.6
- Weight (lb/kg, ± 3%) : 0.99/0.45
Downloads
Additional Information
| Device |
Hard Drive Disk |
| Type |
1TB | 3,5" | Surveillance |
