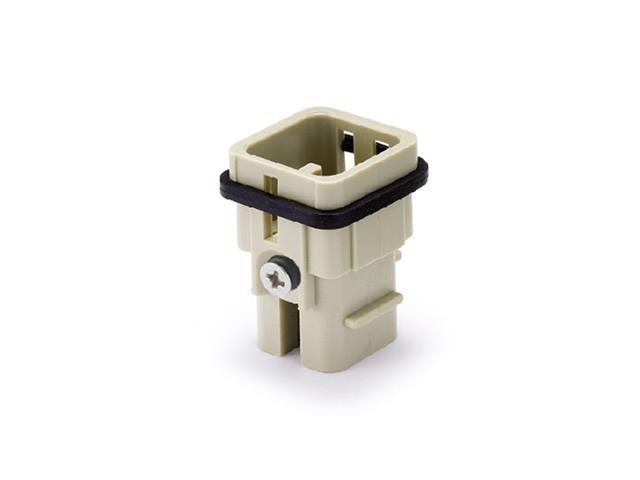

Series 7D (C) Insert 7P+E - Size 3A - Male Crimp Termination 10A/250V = 09120073031

Series 7D (C) Insert 7P+E

Feature(s)

Suitable Crimp Contact Refer to the following:

Silver Plating

CDSM-0,37B
CDSM-0,50B
CDSM-0,75B
CDSM-1,0B
CDSM-1,5B
CDSM-2,5B

Gold Plating

CDGM-0,37B
CDGM-0,50B
CDGM-0,75B
CDGM-1,0B
CDGM-1,5B
CDGM-2,5B

Suitable Plastic Hoods/Housings with Seal Grey M20

H3A.P-BK-1L
H3A.P-CCT-1L-M20 3
H3A.P-SF-1L-M20
H3A.P-SE/S-2B-M20
H3A.P-TE/S-2B-M20
H3A-CV/S-2B/1
H3A-CV/S-2B/2
H3A-CV-1L/1M
H3A-CV-1L/1F

Suitable Plastic Hoods/Housings No Seal Grey M20

H3A.P-SE-2B-M20
H3A.P-TE-2B-M20
H3A.P-BK-1L-SE

Suitable Metal Hoods/Housings No Seal M20

H3A-SEH-2B-M25
H3A-SEHC-2B-M20
H3A-TE-2B-M25

Suitable Metal Hoods/Housings with Seal M20

H3A-TE/S-2B-M20
H3A-BK-1L/W
H3A-BK-1L/W-MCV/S
H3A-SF-1L/W-M20
H3A-CCT-1L/W-M20

Specifications

Inserts
Number of contacts 7+PE
Electrical data acc. to EN 61 984
---Rated current 10A
---Rated voltage  250V
---Rated impulse voltage 4kV
---Pollution degree 3
---Pollution degree 2 also 10A 230/400V 4kV 2
---Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤3mΩ
Crimp terminal
---Wrie gauge 0.14-2.5mm²
---AWG 26-14

Downloads

Additional Information

Device Insert
Type Series 7D (C) | 7P+E
