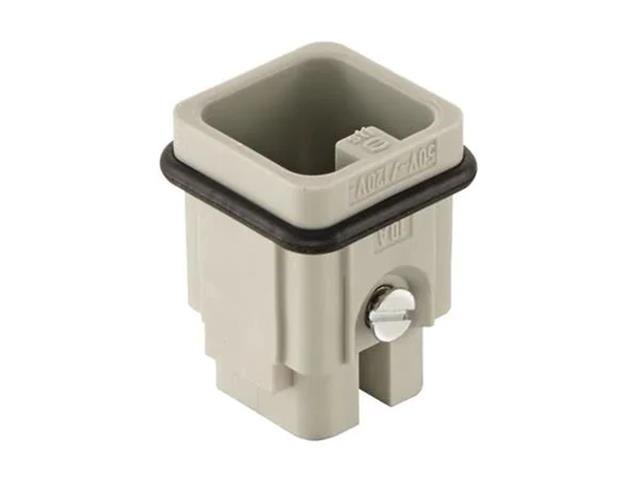

HD-007-MC/A

Name: HD-007-MC/A - Communica [Part No: HD-007-MC/A]
Brand: Wain
SKU: HD-007-MC/A
Price: 148.58 ZAR
Availability: InStock

SKU: HD-007-MC/A

BRAND: Wain

In Stock
R 170.87_{(inc VAT)}
R 148.58_{(ex VAT)}

Collections: Connectors

Series 7D (C) Insert 7P+E - SIZE 3A - Female Crimp Termination 10A/50V = 09210073001 (Different Keyway from HD-007-MC)

Series 7D (C) Insert 7P+E

Inserts
Number of contacts	7+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	10A 230/400V 4kV 2
---Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤3mΩ
Crimp terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14

Device	Insert
Type	Series 7D (C) \| 7P+E \| SIZE 3A
