HD-015-FC

Name: HD-015-FC - Communica [Part No: HD-015-FC]
Brand: Wain
SKU: HD-015-FC
Price: 197.13 ZAR
Availability: InStock

SKU: HD-015-FC

BRAND: Wain

R 226.70_{(inc VAT)}
R 197.13_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

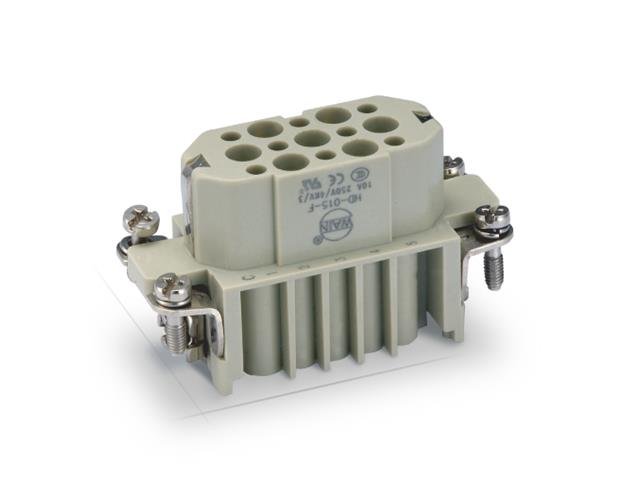

Series 15D (C) Insert 15P+E - Size 10A - Female Crimp Termination 10A/250V = 09210153101

Series 15D (C) Insert 15P+E

Specifications

Inserts
Number of contacts	15+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	10A 230/400V 4kV 2
---Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤3mΩ
Crimp terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14

Additional Information

Device	Insert
Type	Series 15D (C) \| 15P+E

Discover the HD-015-FC Series 15D (C) Insert, engineered for reliability with 15+PE contacts and a robust 10A/250V rating. This high-performance female crimp termination ensures superior electrical connectivity and durability, making it ideal for demanding applications. Upgrade your connections with the HD-015-FC for enhanced safety and efficiency.
