HD-015-MC

Name: HD-015-MC - Communica [Part No: HD-015-MC]
Brand: Wain
SKU: HD-015-MC
Price: 187.74 ZAR
Availability: InStock

SKU: HD-015-MC

BRAND: Wain

R 215.90_{(inc VAT)}
R 187.74_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

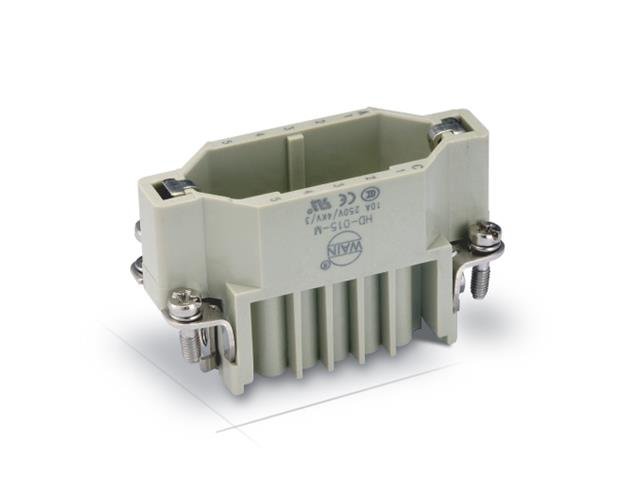

Series 15D (C) Insert 15P+E - Size 10A - Male Crimp Termination 10A/250V = 09210153001

Series 15D (C) Insert 15P+E

Specifications

Inserts
Number of contacts	15+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	10A 230/400V 4kV 2
---Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤3mΩ
Crimp terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14

Additional Information

Device	Insert
Type	Series 15D (C) \| 15P+E

Upgrade your connections with the HD-015-MC Series 15D (C) Insert, featuring 15+PE contacts and a robust 10A/250V rating. Designed for reliability and durability, this crimp termination ensures superior performance in demanding environments, making it ideal for both industrial and commercial applications. Experience peace of mind with its high insulation resistance and exceptional mechanical lifespan.
