HD-025-FC

Name: HD-025-FC - Communica [Part No: HD-025-FC]
Brand: Wain
SKU: HD-025-FC
Price: 205.82 ZAR
Availability: InStock

SKU: HD-025-FC

BRAND: Wain

R 236.69_{(inc VAT)}
R 205.82_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

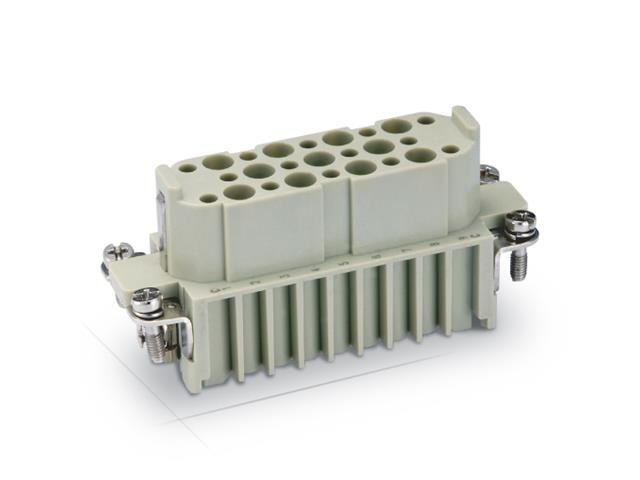

Series 25D (C) Insert 25P+E - Size 16A - Female Crimp Termination 10A/250V = 09210253101

Series 25D (C) Insert 25P+E

Specifications

Inserts
Number of contacts	25+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	10A 230/400V 4kV 2
---Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤3mΩ
Crimp terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14

Downloads

Datasheet - HD-025-FC

Additional Information

Device	Insert
Type	Series 25D (C) \| 25P+E

Upgrade your electrical connections with the HD-025-FC Insert, designed for durability and performance. This female crimp termination supports 10A at 250V, ensuring reliable power delivery. With a robust polycarbonate construction and superior contact resistance, it's perfect for demanding applications. Elevate your setups with this high-quality, long-lasting connector solution.
