HD-025-FC(Z)

Name: HD-025-FC(Z) - Communica [Part No: HD-025-FC(Z)]
Brand: Wain
SKU: HD-025-FC(Z)
Price: 226.40 ZAR
Availability: InStock

SKU: HD-025-FC(Z)

BRAND: Wain

R 260.36_{(inc VAT)}
R 226.40_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

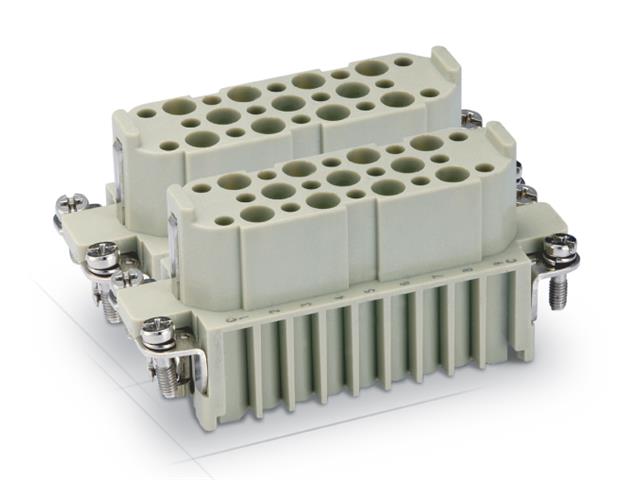

Series 50D (C) Insert 25P+E - Size 32A - Female Crimp Termination 10A/250V (Z) = 09210253111

Series 50D (C) Insert 25P+E

Specifications

Inserts
Number of contacts	50(2x25)+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	10A 230/400V 4kV 2
---Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤3mΩ
Crimp terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14

Downloads

Datasheet - HD-025-FC(Z)

Additional Information

Device	Insert
Type	Series 50D (C) \| 25P+E

Discover the HD-025-FC(Z) Series 50D (C) Insert, designed for reliable performance with 50 contacts and robust female crimp termination. Rated for 10A at 250V, this durable polycarbonate insert offers exceptional insulation resistance and withstands temperatures from -40℃ to +125℃. Upgrade your electrical connections with this high-quality, long-lasting solution for enhanced safety and efficiency.
