HD-025-MC(Z)

Name: HD-025-MC(Z) - Communica [Part No: HD-025-MC(Z)]
Brand: Wain
SKU: HD-025-MC(Z)
Price: 215.63 ZAR
Availability: InStock

SKU: HD-025-MC(Z)

BRAND: Wain

R 247.97_{(inc VAT)}
R 215.63_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

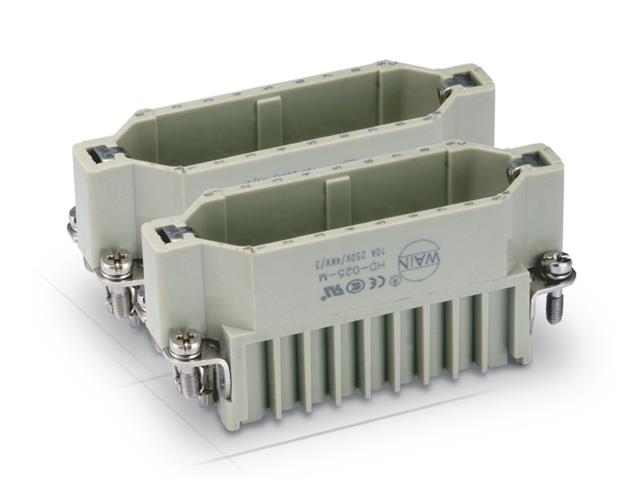

Series 50D (C) Insert 25P+E - Size 32A - Male Crimp Termination 10A/250V (Z) = 09210253011

Series 50D (C) Insert 25P+E

Specifications

Inserts
Number of contacts	50(2x25)+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	10A 230/400V 4kV 2
---Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤3mΩ
Crimp terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14

Downloads

Datasheet - HD-025-MC(Z)

Additional Information

Device	Insert
Type	Series 50D (C) \| 25P+E

The HD-025-MC(Z) Series 50D Insert delivers unmatched reliability with 50 contacts and a robust design, supporting up to 10A and 250V. Crafted from durable polycarbonate, it withstands extreme temperatures and ensures superior performance for your electrical connections. Upgrade your setup with this high-quality insert, designed for lasting durability and exceptional conductivity.
