HD-040-FC

Name: HD-040-FC - Communica [Part No: HD-040-FC]
Brand: Wain
SKU: HD-040-FC
Price: 249.48 ZAR
Availability: InStock

SKU: HD-040-FC

BRAND: Wain

R 286.90_{(inc VAT)}
R 249.48_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

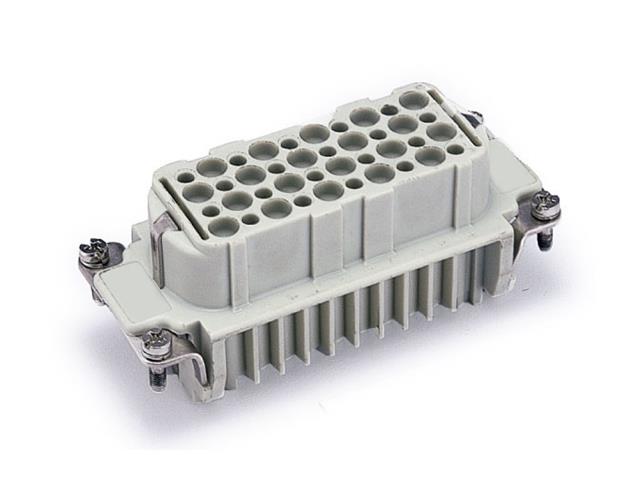

Series 40D (C) Insert 40P+E - Size 16B - Female Crimp Termination 10A/250V = 09210403101

Series 40D (C) Insert 40P+E

Specifications

Inserts
Number of contacts	40+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	10A 230/400V 4kV 2
---Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤3mΩ
Crimp terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14

Downloads

Datasheet - HD-040-FC

Additional Information

Device	Insert
Type	Series 40D (C) \| 40P+E

Discover the HD-040-FC Series 40D (C) Insert, designed for superior performance with 40+PE contacts. Rated for 10A/250V, this reliable crimp termination ensures durability and safety, making it perfect for various electrical applications. Its robust polycarbonate construction withstands extreme temperatures from -40℃ to +125℃, offering peace of mind in demanding environments. Upgrade your connections with this high-quality, hard-gold plated insert today!
