HD-040-MC(Z)

Name: HD-040-MC(Z) - Communica [Part No: HD-040-MC(Z)]
Brand: Wain
SKU: HD-040-MC(Z)
Price: 261.36 ZAR
Availability: InStock

SKU: HD-040-MC(Z)

BRAND: Wain

R 300.56_{(inc VAT)}
R 261.36_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

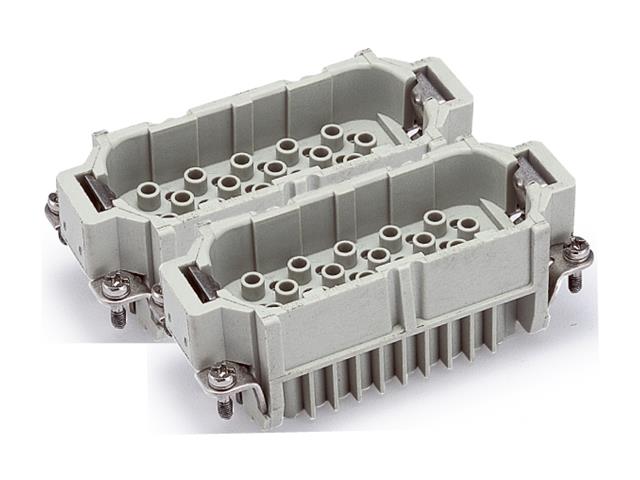

Series 80D (C) Insert 40P+E - Size 32B - Male Crimp Termination 10A/250V (Z) = 09210403011

Series 80D (C) Insert 40P+E

Specifications

Inserts
Number of contacts	80(2x40)+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	10A 230/400V 4kV 2
---Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤3mΩ
Crimp terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14

Downloads

Datasheet - HD-040-MC(Z)

Additional Information

Device	Insert
Type	Series 80D (C) \| 40P+E

Elevate your electrical connections with the HD-040-MC(Z) Series 80D (C) Insert. This robust 40P+E male crimp termination offers reliable performance at 10A/250V, ensuring durability and safety for your applications. Designed for extreme conditions, it features a wide temperature range and superior insulation resistance. Upgrade your setup with this high-quality insert for long-lasting reliability and efficiency.
