HD-064-FC

Name: HD-064-FC - Communica [Part No: HD-064-FC]
Brand: Wain
SKU: HD-064-FC
Price: 293.71 ZAR
Availability: InStock

SKU: HD-064-FC

BRAND: Wain

R 337.77_{(inc VAT)}
R 293.71_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

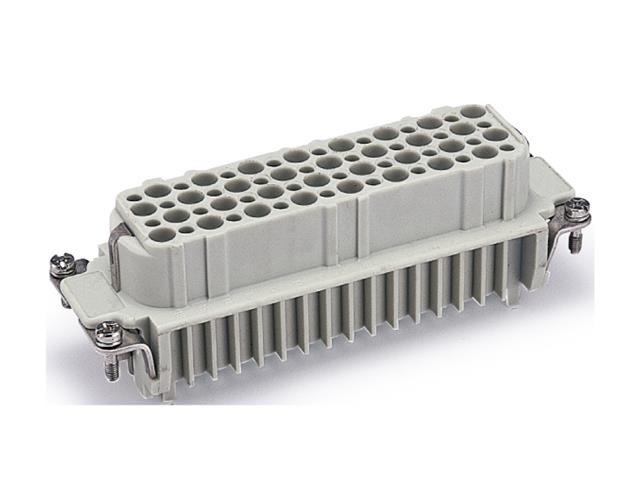

Series 64D (C) Insert 64P+E - Size 24B - Female Crimp Termination 10A/250V = 09210643101

Series 64D (C) Insert 64P+E

Specifications

Inserts
Number of contacts	64+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	10A 230/400V 4kV 2
---Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤3mΩ
Crimp terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14

Downloads

Datasheet - HD-064-FC

Additional Information

Device	Insert
Type	Series 64D (C) \| 64P+E

Discover the HD-064-FC Series 64D (C) Insert, designed for reliable crimp termination with 64 contacts plus PE. Rated for 10A/250V, it offers exceptional durability and performance, perfect for your electrical projects. With superior insulation resistance and a wide temperature range, this insert ensures long-lasting reliability and safety. Upgrade your connections today!
