Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

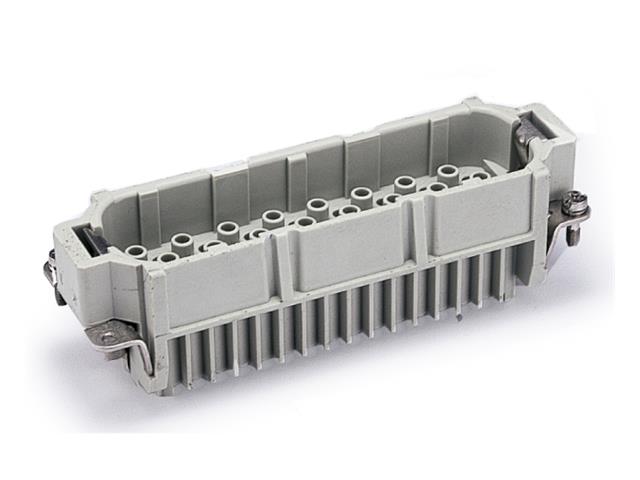

Series 64D (C) Insert 64P+E - Size 24B - Male Crimp Termination 10A/250V = 09210643001

Series 64D (C) Insert 64P+E

Specifications

Inserts
Number of contacts	64+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	10A 230/400V 4kV 2
---Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤3mΩ
Crimp terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14

Downloads

Datasheet - HD-064-MC

Additional Information

Device	Insert
Type	Series 64D (C) \| 64P+E

Upgrade your electrical connections with the HD-064-MC Series 64D (C) Insert. Designed for durability and performance, this male crimp termination ensures reliable 10A/250V operation, featuring hard-gold and hard-silver plated contacts for superior conductivity. With a wide temperature range and excellent insulation resistance, it’s perfect for both industrial and commercial applications. Enhance safety and efficiency in your projects today!
