HD-064-MC(Z)

Name: HD-064-MC(Z) - Communica [Part No: HD-064-MC(Z)]
Brand: Wain
SKU: HD-064-MC(Z)
Price: 307.69 ZAR
Availability: InStock

SKU: HD-064-MC(Z)

BRAND: Wain

R 353.84_{(inc VAT)}
R 307.69_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

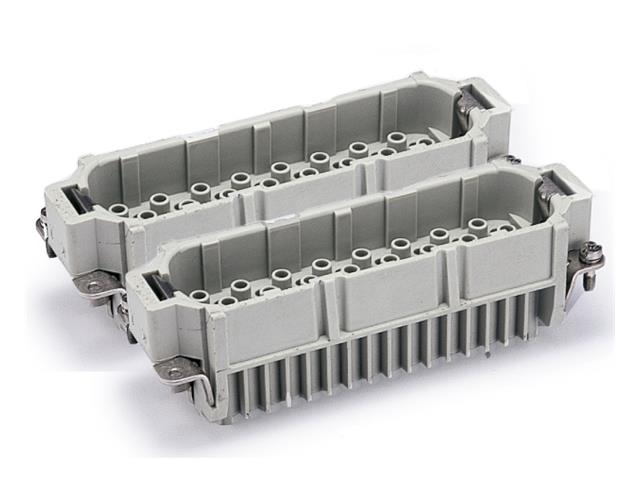

Series 128D (C) Insert 64P+E - Size 48B - Male Crimp Termination 10A/250V (Z) = 09210643011

Series 128D (C) Insert 64P+E

Specifications

Inserts
Number of contacts	128(2x64)+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	10A 230/400V 4kV 2
---Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤3mΩ
Crimp terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14

Downloads

Datasheet - HD-064-MC(Z)

Additional Information

Device	Insert
Type	Series 128D (C) \| 64P+E

Upgrade your connectivity with the HD-064-MC(Z) Series 128D (C) Insert. Designed for reliable performance, it features 128 contacts with male crimp termination, ensuring robust connections for 10A at 250V. Built to last with high-quality materials and a wide temperature range, this insert is perfect for demanding applications. Enhance your setup with this durable, high-performance solution today!
