HD2K-008-GK-008 - Flow Sensors - 67708262023468

HD2K-008-GK-008

Name: HD2K-008-GK-008 - Communica [Part No: HD2K-008-GK-008]
Brand: Honsberg
SKU: HD2K-008-GK-008
Price: 23745 ZAR
Availability: OutOfStock

SKU: HD2K-008-GK-008

BRAND: Honsberg

Sold Out
R 27,306.75_{(inc VAT)}
R 23,745.00_{(ex VAT)}

Collections: Sensors

Type: Flow Sensors

Category: Flow Switch

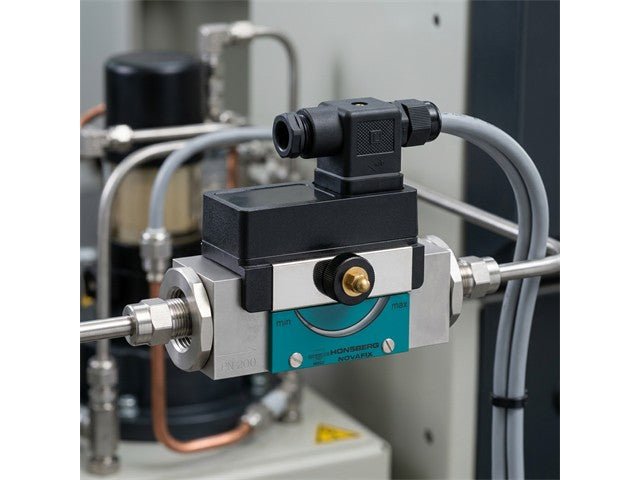

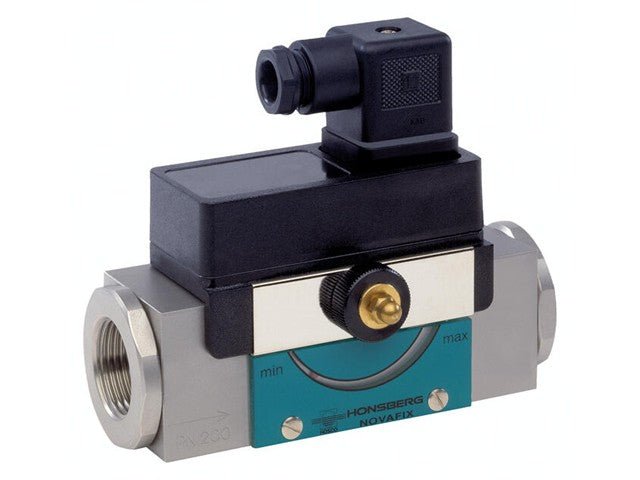

Flow monitor Viscosity-compensated DN 8 - G ¼ - Pressure: PN 200 0.5 - 8 l/min oil 30 ... 330 mm²/s IP65

Flow monitor

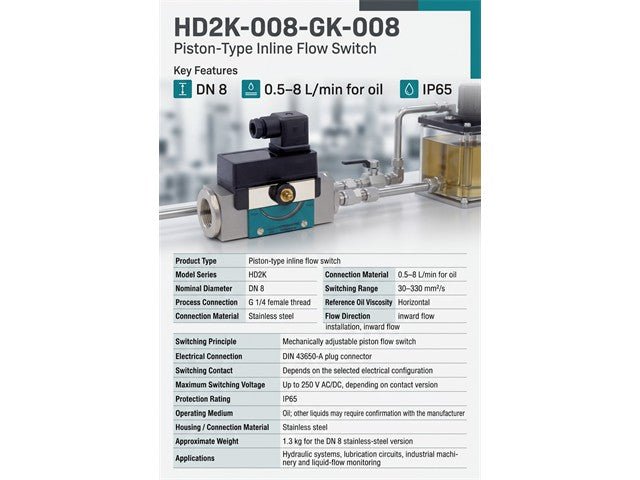

Specifications

Product Type: Piston-type inline flow switch
Model Series: HD2K
Nominal Diameter: DN 8
Process Connection: G 1/4 female thread
Connection Material: Stainless steel
Switching Range: 0.5–8 L/min for oil
Reference Oil Viscosity: 30–330 mm²/s
Flow Direction: Horizontal installation, inward flow
Switching Principle: Mechanically adjustable piston flow switch
Electrical Connection: DIN 43650-A plug connector
Switching Contact: Depends on the selected electrical configuration
Maximum Switching Voltage: Up to 250 V AC/DC, depending on contact version
Protection Rating: IP65
Operating Medium: Oil; other liquids may require confirmation with the manufacturer
Housing / Connection Material: Stainless steel
Approximate Weight: 1.3 kg for the DN 8 stainless-steel version
Applications: Hydraulic systems, lubrication circuits, industrial machinery and liquid-flow monitoring.

Downloads

Datasheet

Additional Information

Device	Flow monitor
Type	Flow \| monitor \| Viscosity-compensated

Optimize your hydraulic systems with the HD2K-008-GK-008 viscosity-compensated flow monitor. Designed for precise oil flow measurement from 0.5 to 8 L/min, this durable stainless steel device ensures reliable performance in industrial applications. With an IP65 rating, it offers excellent protection against dust and water, making it ideal for lubrication circuits and machinery monitoring.
