HDD-024-MC

Name: HDD-024-MC - Communica [Part No: HDD-024-MC]
Brand: Wain
SKU: HDD-024-MC
Price: 272.70 ZAR
Availability: InStock

SKU: HDD-024-MC

BRAND: Wain

R 313.61_{(inc VAT)}
R 272.70_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

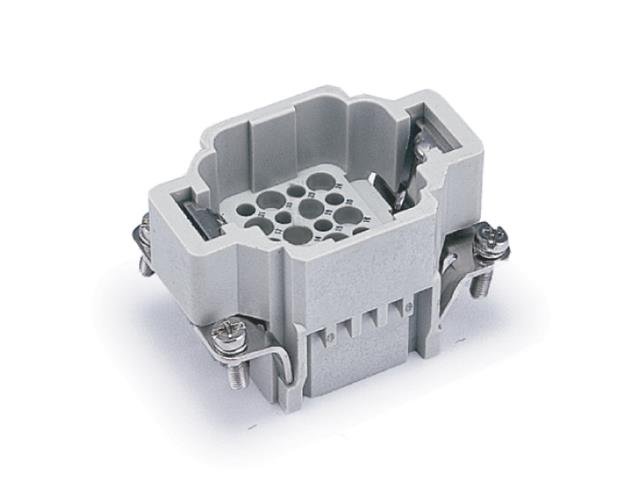

Series 24DD (C) Insert 24P+E - Size 6B - Male Crimp Termination 10A/250V = 09160243001

Series 24DD (C) Insert 24P+E

Specifications

Inserts
Number of contacts	24+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	10A 230/400V 4kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤3mΩ
Crimp terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14

Downloads

Datasheet - HDD-024-MC

Additional Information

Device	Insert
Type	Series 24DD (C) \| 24P+E

Discover the HDD-024-MC, a robust 24P+E male crimp termination insert designed for reliability and performance. With a rated current of 10A and voltage of 250V, it ensures optimal electrical connections in demanding environments. Crafted from durable polycarbonate and featuring hard-gold and silver-plated contacts, this insert guarantees a long mechanical lifespan and excellent conductivity. Upgrade your electrical systems with this high-quality insert for enhanced safety and efficiency.
