HDD-042-FC

Name: HDD-042-FC - Communica [Part No: HDD-042-FC]
Brand: Wain
SKU: HDD-042-FC
Price: 308.45 ZAR
Availability: InStock

SKU: HDD-042-FC

BRAND: Wain

R 354.72_{(inc VAT)}
R 308.45_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

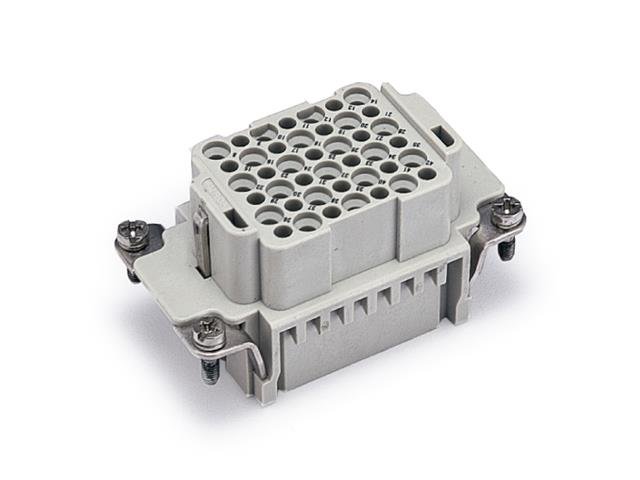

Series 42DD (C) Insert 42P+E - Size 10B - Female Crimp Termination 10A/250V = 09160423101

Series 42DD (C) Insert 42P+E

Specifications

Inserts
Number of contacts	42+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	10A 230/400V 4kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤3mΩ
Crimp terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14

Downloads

Datasheet - HDD-042-FC

Additional Information

Device	Insert
Type	Series 42DD (C) \| 42P+E

Elevate your electrical connections with the HDD-042-FC Series 42DD (C) Insert. Designed for reliability, this female crimp termination supports 10A at 250V, ensuring optimal performance in demanding environments. With robust materials and a wide temperature range, it's perfect for industrial applications. Enhance your setup with this durable, high-quality insert today!
