HDD-072-MC

Name: HDD-072-MC - Communica [Part No: HDD-072-MC]
Brand: Wain
SKU: HDD-072-MC
Price: 398 ZAR
Availability: InStock

SKU: HDD-072-MC

BRAND: Wain

R 457.70_{(inc VAT)}
R 398.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

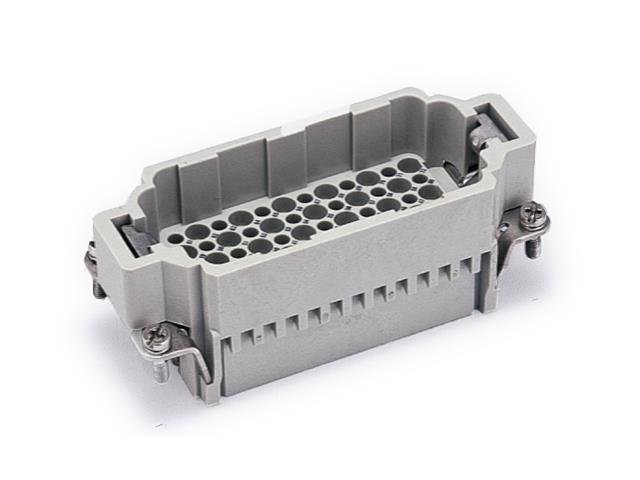

Series 72DD (C) Insert 72P+E - Size 16B - Male Crimp Termination 10A/250V = 09210723001

Series 72DD (C) Insert 72P+E

Specifications

Inserts
Number of contacts	72+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	10A 230/400V 4kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤3mΩ
Crimp terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14

Downloads

Datasheet - HDD-072-MC

Additional Information

Device	Insert
Type	Series 72DD (C) \| 72P+E

Upgrade your electrical connections with the HDD-072-MC Series 72DD (C) Insert. Designed for durability, this male crimp termination offers a robust 10A/250V rating and superior insulation resistance. Perfect for demanding applications, it ensures reliable performance with a long mechanical life of over 500 cycles. Trust in its hard-gold and hard-silver plated contacts for excellent conductivity and minimal contact resistance.
