HDD-072-MC(73-144)

Name: HDD-072-MC(73-144) - Communica [Part No: HDD-072-MC(73-144)]
Brand: Wain
SKU: HDD-072-MC(73-144)
Price: 338.58 ZAR
Availability: InStock

SKU: HDD-072-MC(73-144)

BRAND: Wain

R 389.37_{(inc VAT)}
R 338.58_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

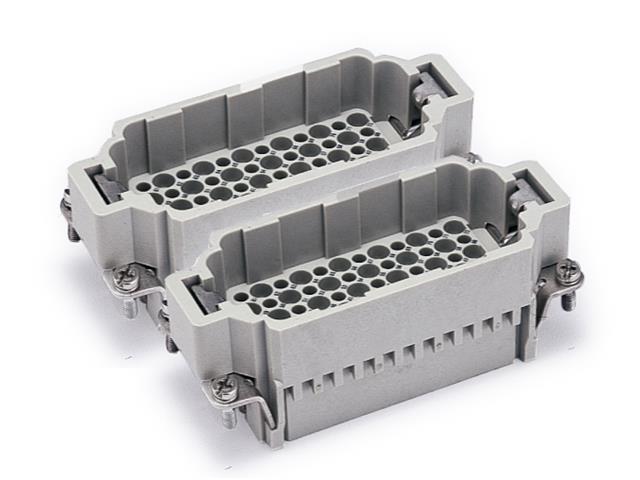

Series 144DD (C) Insert 72P+E - Size 32B - Male Crimp Termination 10A/250V -Numbered 73- 144 = 09210723011

Series 144DD (C) Insert 72P+E

Specifications

Inserts
Number of contacts	144(2x72)+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	10A 230/400V 4kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤3mΩ
Crimp terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14

Downloads

Datasheet - HDD-072-MC(73-144)

Additional Information

Device	Insert
Type	Series 144DD (C) \| 72P+E

Discover the HDD-072-MC(73-144) Series 144DD (C) Insert, designed for reliable performance with 144 contacts and a robust male crimp termination. Rated for 10A/250V, this durable insert withstands extreme temperatures and offers superior insulation resistance, making it perfect for demanding applications. Upgrade your connections with this high-quality, versatile solution that ensures safety and efficiency in every use.
