HDD-108-MC(109-216)

Name: HDD-108-MC(109-216) - Communica [Part No: HDD-108-MC(109-216)]
Brand: Wain
SKU: HDD-108-MC(109-216)
Price: 369.47 ZAR
Availability: InStock

SKU: HDD-108-MC(109-216)

BRAND: Wain

R 424.89_{(inc VAT)}
R 369.47_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

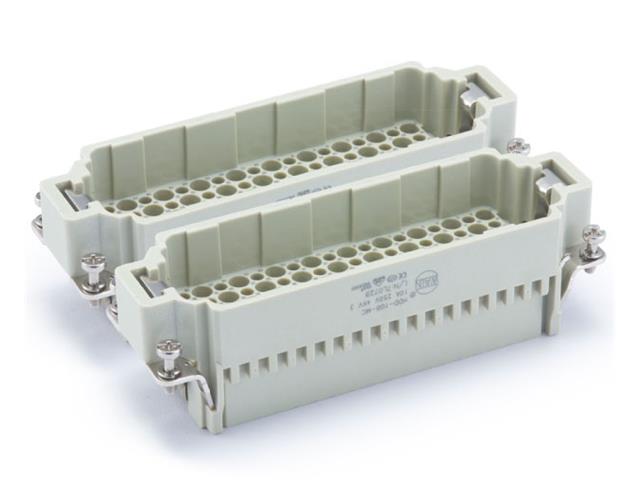

Series 216DD (C) Insert 108P+E - Size 48B - Male Crimp Termination 10A/250V-Numbered 1 = 09-216 = 09161083011

Series 216DD (C) Insert 108P+E

Specifications

Inserts
Number of contacts	216(2x108)+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	10A 230/400V 4kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤3mΩ
Crimp terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14

Downloads

Datasheet - HDD-108-MC(109-216)

Additional Information

Device	Inset
Type	Series 216DD (C) \| 108P+E

Discover the HDD-108-MC(109-216) male crimp termination insert, designed for reliable performance with a rated current of 10A and voltage of 250V. Its durable polycarbonate construction ensures longevity, while hard-gold and hard-silver plated contacts provide superior conductivity. Perfect for demanding applications, this insert guarantees safety and efficiency in every connection.
