HE-006-F

Name: HE-006-F - Communica [Part No: HE-006-F]
Brand: Wain
SKU: HE-006-F
Price: 163.35 ZAR
Availability: InStock

SKU: HE-006-F

BRAND: Wain

R 187.85_{(inc VAT)}
R 163.35_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

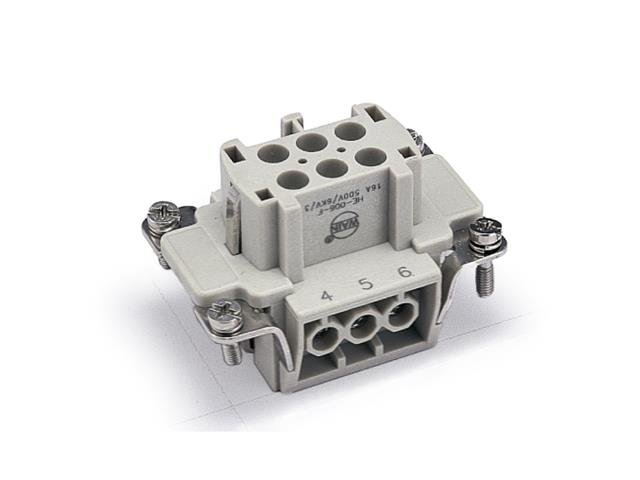

Series 6E Insert 6P+E - Size 6B - Female Screw Termination with Wire Protection 16A/500V = 09330062701

Series 6E Insert 6P+E - Size 6B

Specifications

Inserts
Number of contacts	6+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Screw terminal
---Wrie gauge	0.75-2.5mm²
---AWG	18-14
---Tightening/Test torque	0.5Nm
---Stripping length	7.0mm

Downloads

Datasheet - HE-006-F

Additional Information

Device	Insert
Type	Series 6E \| 6P+E \| Size 6B

Upgrade your electrical connections with the HE-006-F Series 6E Insert. Designed for durability and safety, this 6P+E connector supports 16A at 500V and features robust wire protection. With a wide temperature range and superior flammability rating, it ensures reliable performance in demanding environments. Perfect for industrial applications, this connector guarantees secure connections and longevity.
