HE-006-FC/N

SKU: HE-006-FC/N

BRAND: Wain

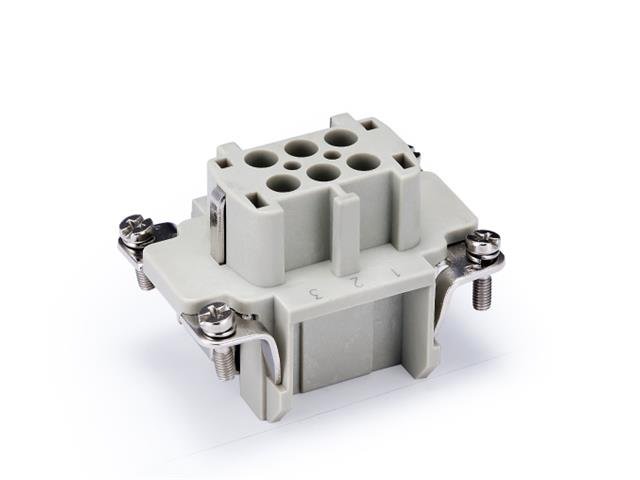

Series 6E (C) Insert 6P+E - Size 6B - Female Enhanced Crimp Termination 16A/500V = 09330062702

Series 6E (C) Insert 6P+E

Specifications

Inserts
Number of contacts 6+PE
Electrical data acc. to DIN EN 61 984
---Rated current 16A
---Rated voltage 500V
---Rated impulse voltage 6kV
---Pollution degree 3
---Pollution degree 2 also 16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
  hard-silver plated
Contact resistance ≤1mΩ
Crimp terminal
---Wrie gauge 0.14-4.0mm²
---AWG 26-12
---Stripping length 7.5mm

Downloads

Additional Information

Device Insert
Type Series 6E (C) | 6P+E
