HE-006-MC/N

Name: HE-006-MC/N - Communica [Part No: HE-006-MC/N]
Brand: Wain
SKU: HE-006-MC/N
Price: 117.45 ZAR
Availability: InStock

SKU: HE-006-MC/N

BRAND: Wain

R 135.07_{(inc VAT)}
R 117.45_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

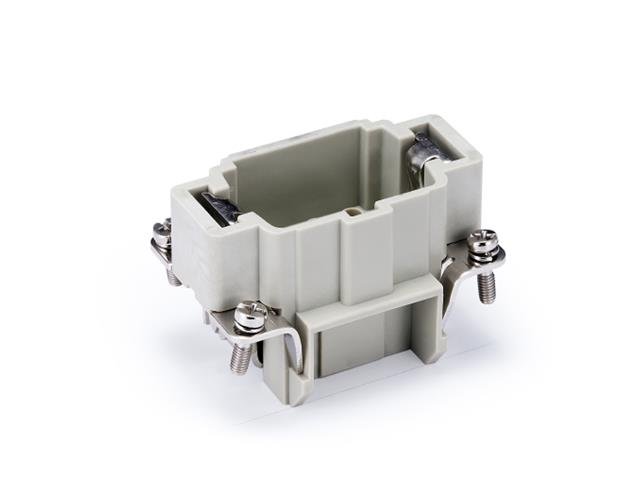

Series 6E (C) Insert 6P+E - Size 6B - Male Enhanced Crimp Termination 16A/500V = 09330062602

Series 6E (C) Insert 6P+E

Specifications

Inserts
Number of contacts	6+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Crimp terminal
---Wrie gauge	0.14-4.0mm²
---AWG	26-12
---Stripping length	7.5mm

Downloads

Datasheet - HE-006-MC/N

Additional Information

Device	Insert
Type	Series 6E (C) \| 6P+E

Discover the HE-006-MC/N, a premium Series 6E (C) insert with 6P+E configuration, delivering reliable performance with a rated current of 16A and voltage of 500V. Crafted from durable polycarbonate, this enhanced crimp termination ensures long-lasting reliability and superior conductivity, making it ideal for demanding applications. Upgrade your electrical connections with this high-quality, efficient solution designed for safety and performance.
