HE-010-F

Name: HE-010-F - Communica [Part No: HE-010-F]
Brand: Wain
SKU: HE-010-F
Price: 217.80 ZAR
Availability: InStock

SKU: HE-010-F

BRAND: Wain

R 250.47_{(inc VAT)}
R 217.80_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

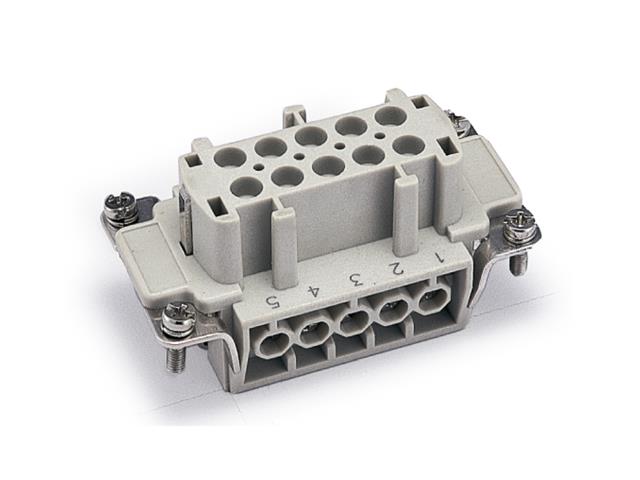

Series 10E Insert 10P+E - Size 10B - Female Screw Termination w/Wire Protection 16A/500V = 09330102701

Series 10E Insert 10P+E - Size 10B

Specifications

Inserts
Number of contacts	10+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Screw terminal
---Wrie gauge	0.75-2.5mm²
---AWG	18-14
---Tightening/Test torque	0.5Nm
---Stripping length	7.0mm

Downloads

Datasheet - HE-010-F

Additional Information

Device	Insert
Type	Series 10E \| 10P+E - Size 10B

Upgrade your electrical connections with the HE-010-F Series 10E Insert, designed for reliable performance with a rated current of 16A and voltage of 500V. Featuring robust screw terminations and superior wire protection, this durable insert ensures safety and longevity in demanding environments. Ideal for both industrial and commercial applications, it delivers exceptional insulation resistance and high mechanical life for seamless operation.
