HE-010-FC

Name: HE-010-FC - Communica [Part No: HE-010-FC]
Brand: Wain
SKU: HE-010-FC
Price: 145.80 ZAR
Availability: InStock

SKU: HE-010-FC

BRAND: Wain

R 167.67_{(inc VAT)}
R 145.80_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

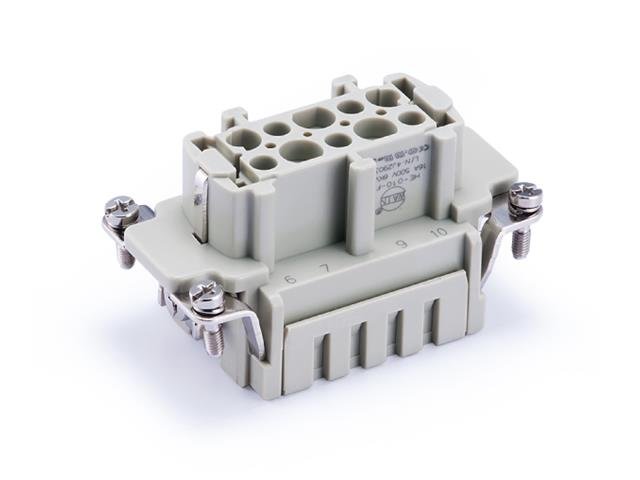

Series 10E (C) Insert 10P+E - Size 10B - Female Crimp Termination 16A/500V = 09330102702

Series 10E (C) Insert 10P+E - Size 10B

Specifications

Inserts
Number of contacts	10+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Crimp terminal
---Wrie gauge	0.14-4.0mm²
---AWG	26-12
---Stripping length	7.5mm

Downloads

Datasheet - HE-010-FC

Additional Information

Device	Insert
Type	Series 10E (C) \| 10P+E - Size 10B

Upgrade your electrical connections with the HE-010-FC Series 10E (C) Insert, featuring female crimp termination for reliable 16A/500V performance. Designed for durability and safety, its polycarbonate construction ensures resilience from -40℃ to +125℃. Experience superior conductivity with hard-gold plated contacts, making it the ideal choice for high-quality installations.
