HE-010-FS B

SKU: HE-010-FS B

BRAND: Wain

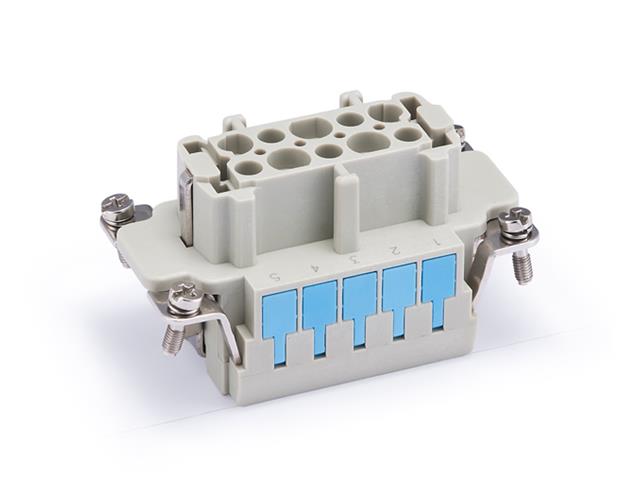

Series 10ES Insert 10P+E - Size 10B - Female Spring Termination 16A/500V = 09330102716

Series 10ES Insert 10P+E

Specifications

Inserts
Number of contacts 10+PE
Electrical data acc. to DIN EN 61 984
---Rated current 16A
---Rated voltage 500V
---Rated impulse voltage 6kV
---Pollution degree 3
---Pollution degree 2 also 16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
  hard-silver plated
Contact resistance ≤1mΩ
Spring terminal
---Wrie gauge 0.14-2.5mm²
---AWG 26-14
---Stripping length 7-9mm

Downloads

Additional Information

Device Insert
Type Series 10ES | 10P+E
