HE-010-M

Name: HE-010-M - Communica [Part No: HE-010-M]
Brand: Wain
SKU: HE-010-M
Price: 209.52 ZAR
Availability: InStock

SKU: HE-010-M

BRAND: Wain

R 240.95_{(inc VAT)}
R 209.52_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

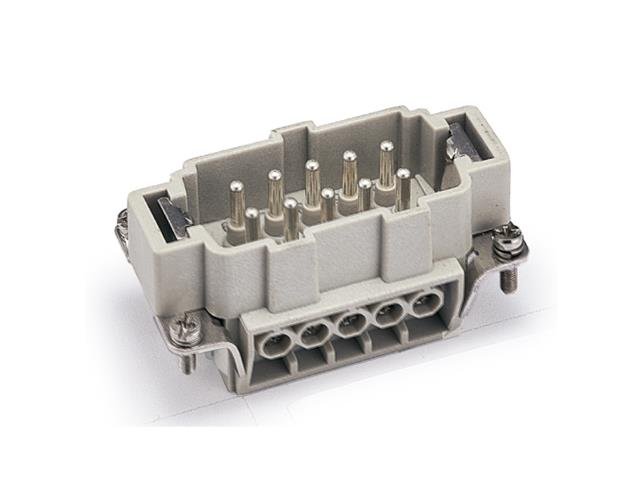

Series 10E Insert 10P+E - Size 10B - Male Screw Termination w/Wire Protection 16A/500V = 09330102601

Series 10E Insert 10P+E - Size 10B

Specifications

Inserts
Number of contacts	10+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Screw terminal
---Wrie gauge	0.75-2.5mm²
---AWG	18-14
---Tightening/Test torque	0.5Nm
---Stripping length	7.0mm

Downloads

Datasheet - HE-010-M

Additional Information

Device	Insert
Type	Series 10E \| 10P+E \| Size 10B

The HE-010-M Series 10E Insert offers reliable male screw termination with wire protection, perfect for your electrical needs. Rated for 16A and 500V, this durable insert ensures maximum performance and safety with a robust design that withstands extreme temperatures. Upgrade your connections with top-quality copper alloy contacts, ensuring longevity and minimal resistance.
