HE-016-F

Name: HE-016-F - Communica [Part No: HE-016-F]
Brand: Wain
SKU: HE-016-F
Price: 265.68 ZAR
Availability: InStock

SKU: HE-016-F

BRAND: Wain

R 305.53_{(inc VAT)}
R 265.68_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

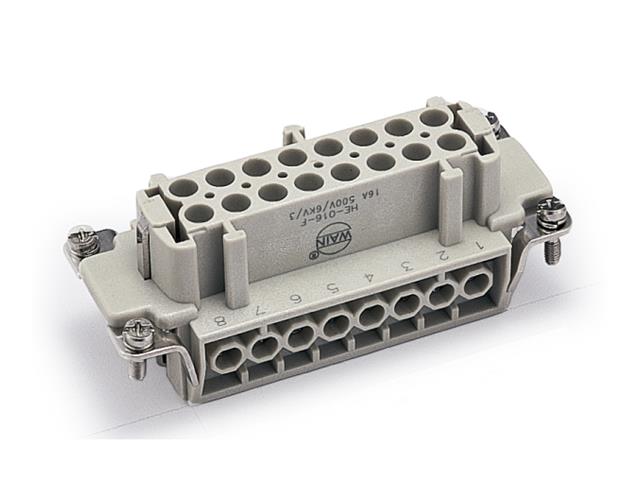

Series 16E Insert 16P+E - Size 16B - Female Screw Termination w/Wire Protection 16A/500V = 09330162701

Series 16E Insert 16P+E - Size 16B

Specifications

Inserts
Number of contacts	16+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Screw terminal
---Wrie gauge	0.75-2.5mm²
---AWG	18-14
---Tightening/Test torque	0.5Nm
---Stripping length	7.0mm

Downloads

Datasheet - HE-016-F

Additional Information

Device	Insert
Type	Series 16E \| 16P+E \| Size 16B

Upgrade your electrical connections with the HE-016-F Series 16E Insert. Designed for reliability, this female screw termination offers a robust 16A/500V rating, ensuring maximum safety and performance. With superior insulation resistance and durable construction, it's perfect for demanding applications. Experience peace of mind with the HE-016-F, built to last and deliver optimal functionality.
