HE-016-FC

Name: HE-016-FC - Communica [Part No: HE-016-FC]
Brand: Wain
SKU: HE-016-FC
Price: 167.40 ZAR
Availability: InStock

SKU: HE-016-FC

BRAND: Wain

R 192.51_{(inc VAT)}
R 167.40_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

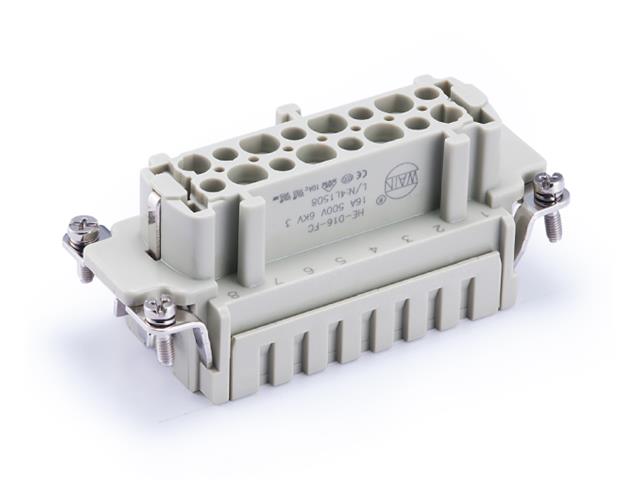

Series 16E (C) Insert 16P+E - Size 16B - Female Crimp Termination 16A/500V = 09330162702

Series 16E (C) Insert 16P+E - Size 16B

Specifications

Inserts
Number of contacts	16+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Crimp terminal
---Wrie gauge	0.14-4.0mm²
---AWG	26-12
---Stripping length	7.5mm

Downloads

Datasheet - HE-016-FC

Additional Information

Device	Insert
Type	Series 16E (C) \| 16P+E \| Size 16B

Upgrade your electrical connections with the HE-016-FC Series 16E Insert. Designed for durability and efficiency, this female crimp termination supports 16A at 500V, ensuring reliable performance in any application. With a robust polycarbonate construction and a wide temperature range of -40℃ to +125℃, it’s built to last. Experience superior conductivity with hard-gold and hard-silver plated contacts, making it the ideal choice for demanding environments.
