HE-016-FC(17-32)

Name: HE-016-FC(17-32) - Communica [Part No: HE-016-FC(17-32)]
Brand: Wain
SKU: HE-016-FC(17-32)
Price: 184.14 ZAR
Availability: InStock

SKU: HE-016-FC(17-32)

BRAND: Wain

R 211.76_{(inc VAT)}
R 184.14_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

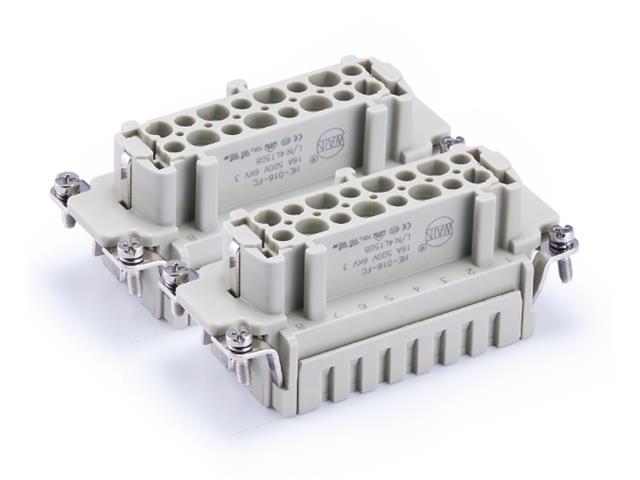

Series 32E (C) Insert 16P+E - Size 32B - Female Crimp Termination 16A/500V -Numbered 17- 32 = 09330162712

Series 32E (C) Insert 16P+E - Size 32B

Specifications

Inserts
Number of contacts	32(2x16)+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Crimp terminal
---Wrie gauge	0.14-4.0mm²
---AWG	26-12
---Stripping length	7.5mm

Downloads

Datasheet - HE-016-FC(17-32)

Additional Information

Device	Insert
Type	Series 32E (C) \| 16P+E \| Size 32B

Discover the HE-016-FC(17-32) Series 32E (C) Insert, engineered for superior performance with 16A/500V ratings. This durable, female crimp termination offers exceptional reliability and high insulation resistance, making it ideal for demanding applications. Upgrade your electrical connections today for enhanced safety and efficiency!
